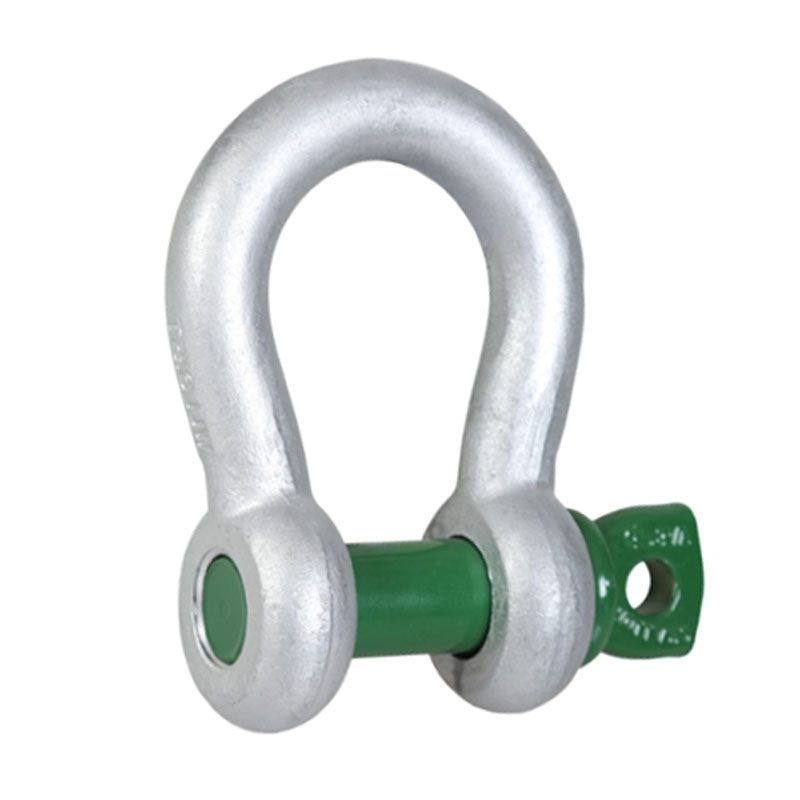

Green Pin® Bow Shackle SC

From $8.90

Green Pin® Bow Shackle with a screw collar pin can be used for both one-leg and multi-leg systems. Due to the galvanization of the shackle its long-term durability is assured. The screw pin enables quick assembly and was designed for frequent assembly and disassembly for rigging activities.

  • Screw pin for quick (dis)assembly
  • Galvanization assures long-term durability
  • Suitable for both one-leg and multi-leg systems
  • Superior stock availability of 99%
  • Material: bow and pin high tensile steel, Grade 6, quenched and tempered
  • Safety factor: MBL equals 6 x WLL
  • Finish: hot dipped galvanized
  • Temp range: -40°C up to +200°C
  • Fully Complies with AS2741 Safety Factor and certified by EN 13889, US Fed, RR-C-271, DNV GL, and ASME B30.26
  • Sizes available are from 6mm to 65mm Pin Size

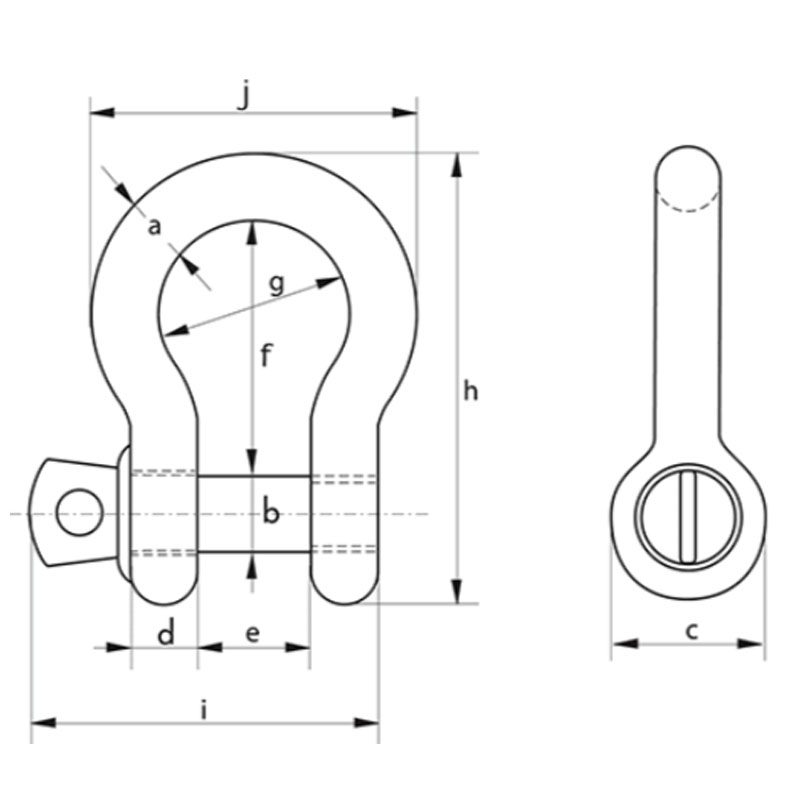

  • For more info see specifications of each size as per diagram
Add to quote
SKU: N/A

Description

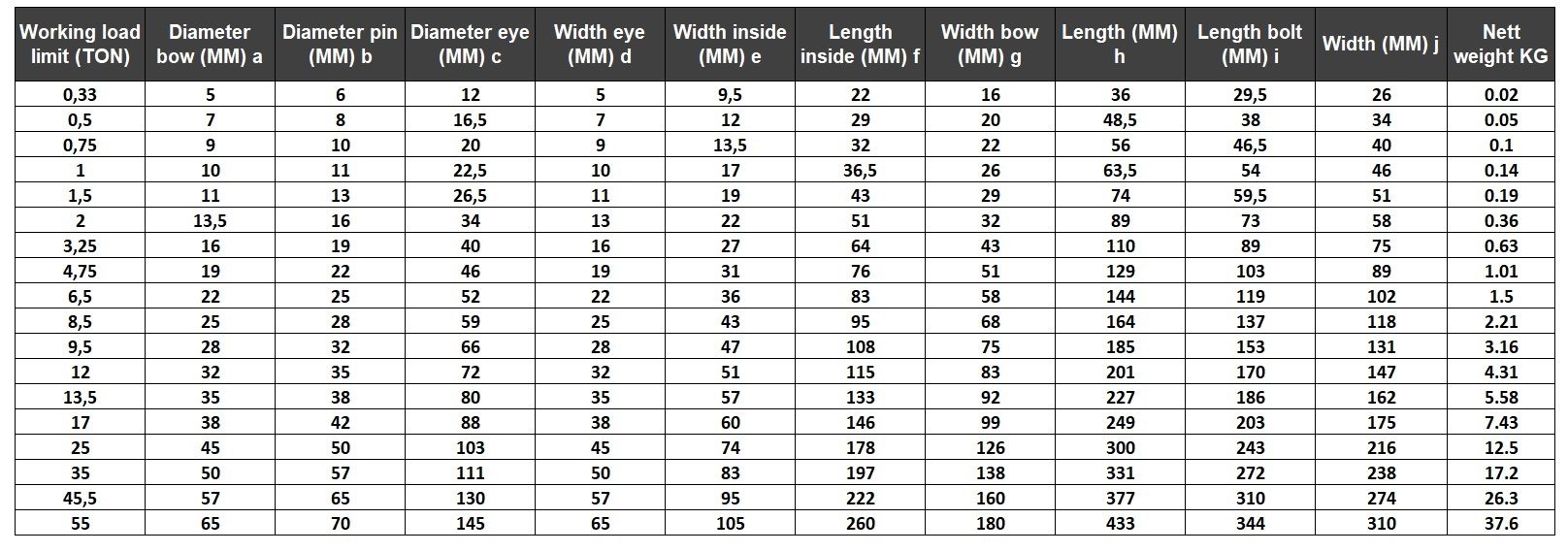

Size (mm) Code WLL (T) Weight (Kg) Dimensions (mm)
A B C D E F G H I J
6 5253 0.33 0.02 5 6 12 5 9.5 22 16 36 29.5 23
8 5254 0.5 0.5 7 8 16.5 7 12 29 20 48.5 38 34
10 5255 0.75 0.1 9 10 20 9 13.5 32 22 56 46.5 40
11 5256 1 0.14 10 11 22.5 10 17 36.5 26 63.5 54 46
13 5257 1.5 0.19 11 13 26.5 11 19 43 29 74 59.5 51
16 5258 2 0.36 13.5 16 34 13 22 51 32 89 73 58
19 5259 3.25 0.63 16 19 40 16 27 64 43 110 89 75
22 5260 4.75 1.01 19 22 46 19 31 76 51 129 103 89
25 5261 6.5 1.5 22 25 52 22 36 83 58 144 11+ 102
28 5262 8.5 2.21 25 28 59 25 43 95 68 165 137 118
32 5263 9.5 3.16 28 32 66 28 47 108 75 185 153 131
35 12217 12 4.13 32 35 72 32 51 115 83 201 170 149
38 5264 13.5 5.58 35 38 80 35 57 133 92 227 186 162
42 5265 17 7.43 38 42 88 38 60 146 99 249 209 175
50 5266 25 12.5 45 50 103 45 74 178 126 300 243 216
57 5267 35 17.2 50 57 111 50 83 197 138 331 272 238
65 16440 42.5 26.3 57 65 130 57 95 222 160 377 310 274
