WebRail Heavy Vehicle Fall Protection System

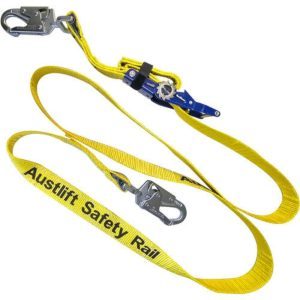

WebRail by SpanSet is a fall protection system for the back of heavy vehicles, using SpanSet’s patented Tension Force Indicator and Kevlar core webbing to make loading, unloading and rigging safer. It can be removed in minutes for crane and forklift access, or left in place. Each kit has four straps with twisted double action safety hooks in a kit bag.

Posts are not included with the kit. Contact us for post engineering specifications.

Not held in stock, please call for a delivery time frame.

SKU: N/A

Description

Kits available

  • Set of 4 x 4m WebRail assemblies in kit bag.
  • Set of 4 x 5m WebRail assemblies in kit bag.
  • Set of 4 x 6m WebRail assemblies in kit bag.
  • Set of 4 x 7m WebRail assemblies in kit bag.
  • Set of 4 x 8m WebRail assemblies in kit bag.
  • Other lengths and replacement straps are also available.

Tension Force Indicator

The Tension Force Indicator (TFI) is fitted as standard to guard against over tensioning, giving the optimum tension for effective fall restraint. The Kevlar core minimises stretch and deflection, with webbing elongation of 1% or less at 500kg.

Intermediate posts

  • Posts can be solid or hollow.
  • 4140 and C450L0 refer only to the grade of steel, check with your steel supplier for details.
  • The top of each post must withstand a minimum lateral force of 50kg.
  • Webbing passing points are optional, as long as the webbing passes on the inside of the post.
  • Secure the bottom of each post with a safety chain.
  • The post bottom end depends on the type of deck pocket.

Rear posts and head board

  • Posts are free standing and must withstand a minimum of 250kg of force from the ratchet assembly.
  • The end post takes all the force from the WebRail ratchet assemblies.
  • The access safety chain is for safe access and egress only and must not take any load from the WebRail system.
  • Eye bolts or fittings on the end post must suit the WebRail snap hook, which has a 21mm gate opening.
  • The head board eye bolts and force requirements are the same as the rear posts.
  • Secure the bottom of each post with a safety chain.

SpanSet WebRail Data Sheet (PDF)
