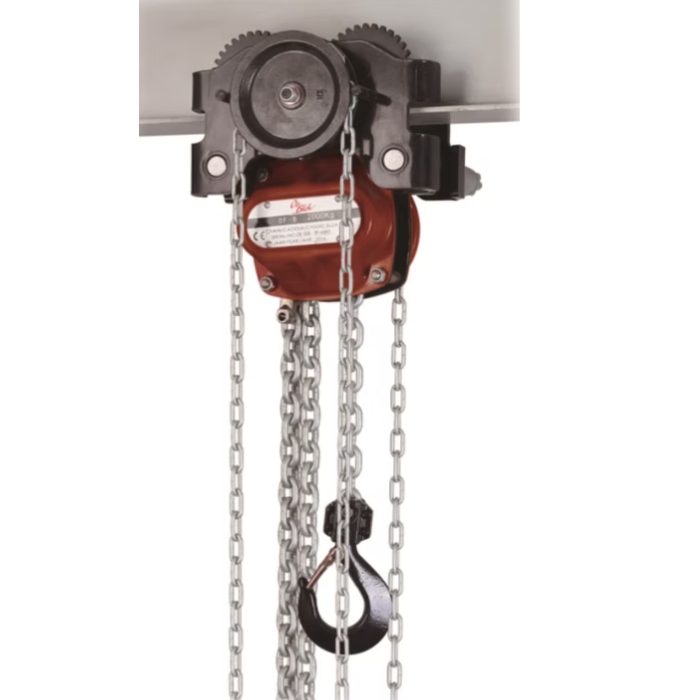

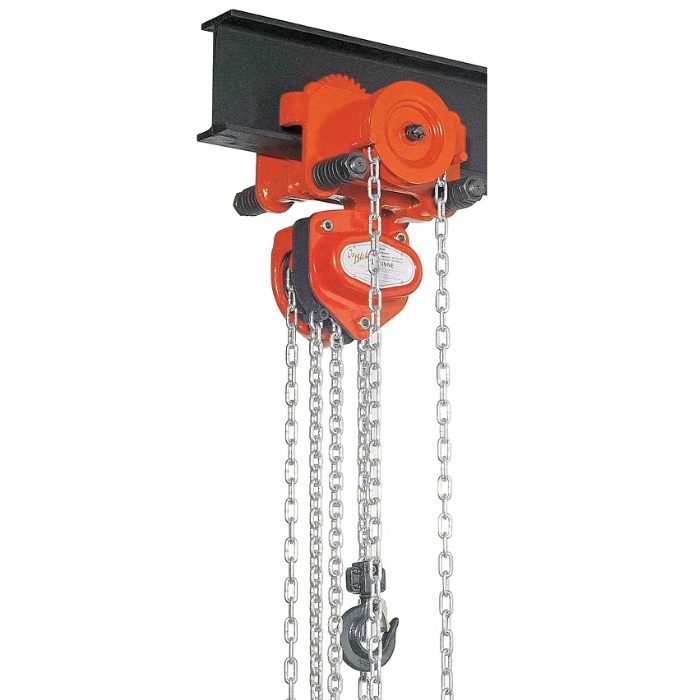

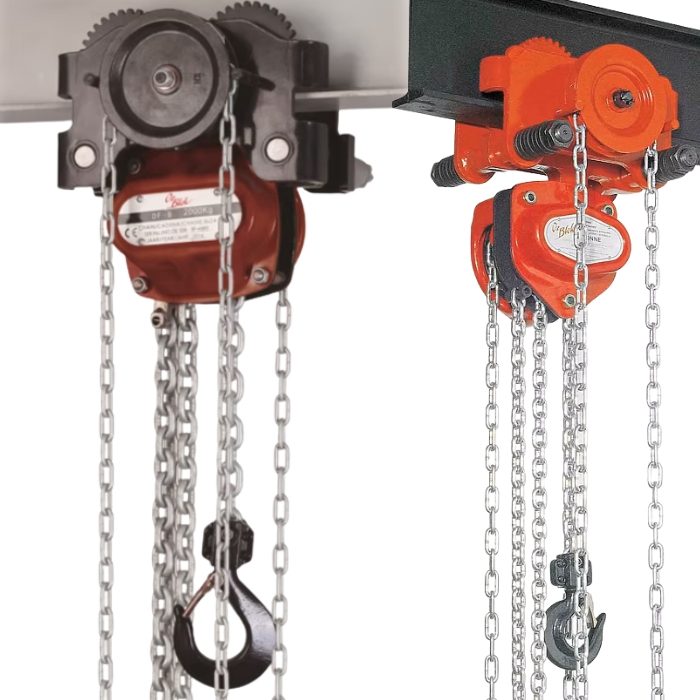

OzBlok Combined Hoisting Assembly

From $885.00

The OzBlok Combined Hoisting Assembly is a compact chain hoist and beam trolley in one, ideal where headroom is limited. The ergonomic design takes minimal operator effort to raise the load, position it exactly and traverse heavy loads. It also offers theft protection. Available from 1t to 5t with a 3m height of lift.

Add to quote
SKU: N/A

Description

WLL (t) SKU Height of Lift (m) Beam Width (mm) Min Headroom (mm) Lifting Speed (m/min) Weight (kg)
1 7407 3 74-203 259 17 32
2 7627 3 85-203 376 10 32
3 7626 3 74-180 593 7.3 34
5 7625 3 98-180 741 3.5 46

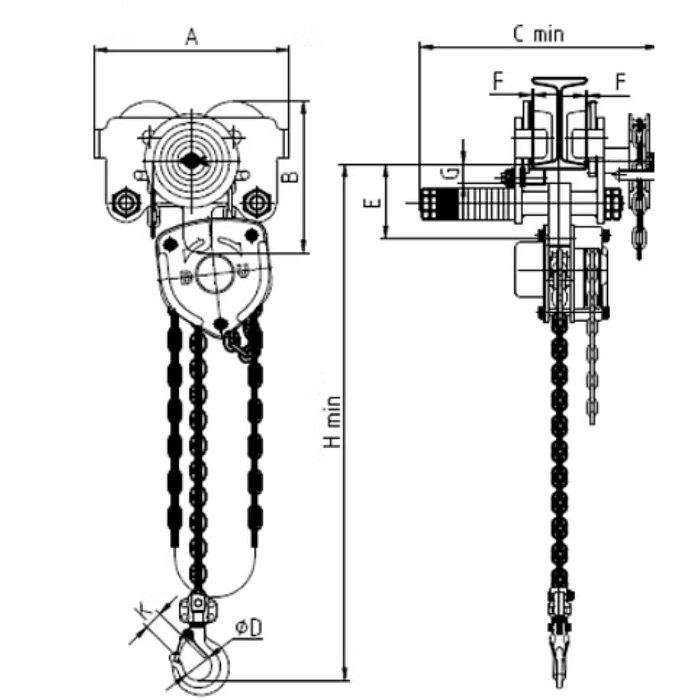

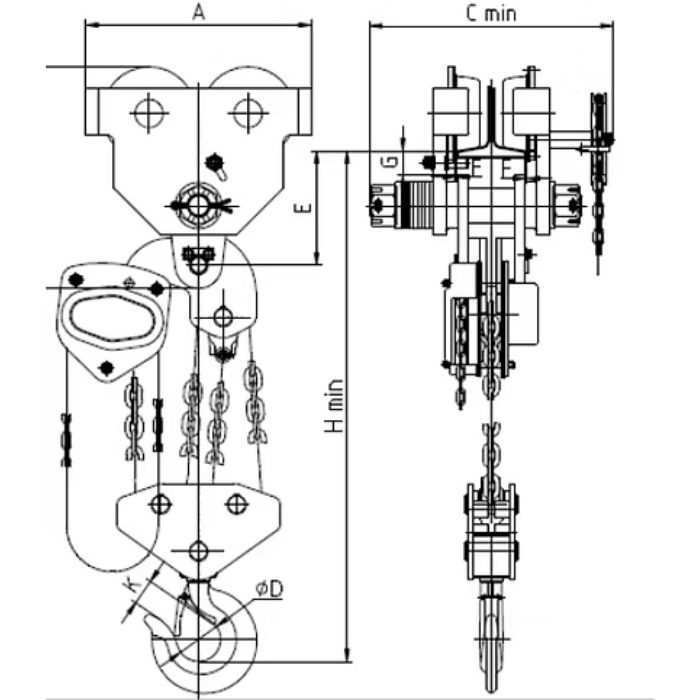

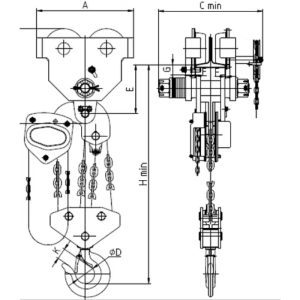

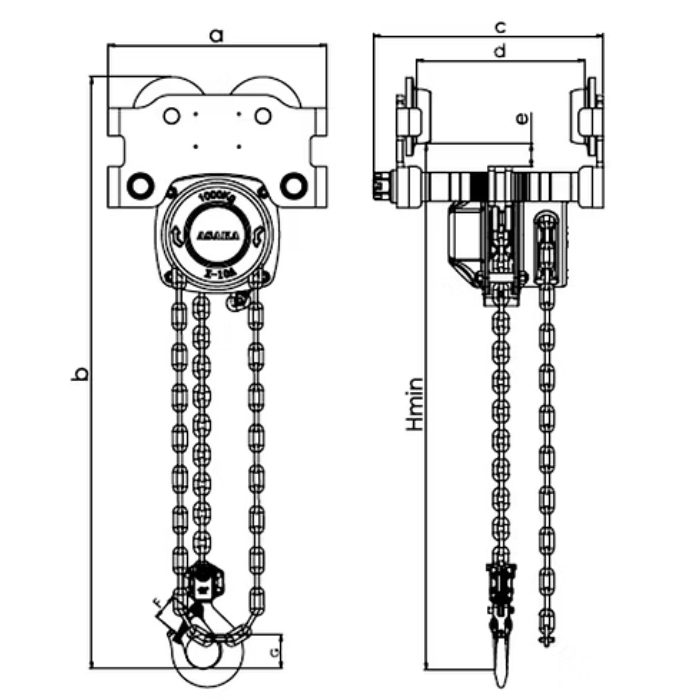

OzBlok Combined Hoisting Assembly diagram AOzBlok Combined Hoisting Assembly diagram BOzBlok Combined Hoisting Assembly diagram C

Dimensions (mm)
WLL (t) A B C D E F
1 240 382 312 203 26 30
2 280 481 329 203 35 34
3 363 230 14 304 30 3
5 436 260 18 330 42 3
