Home / Products / Lifting Equipment / Concrete & Container Fittings / G80 Concrete Lifting Clutch

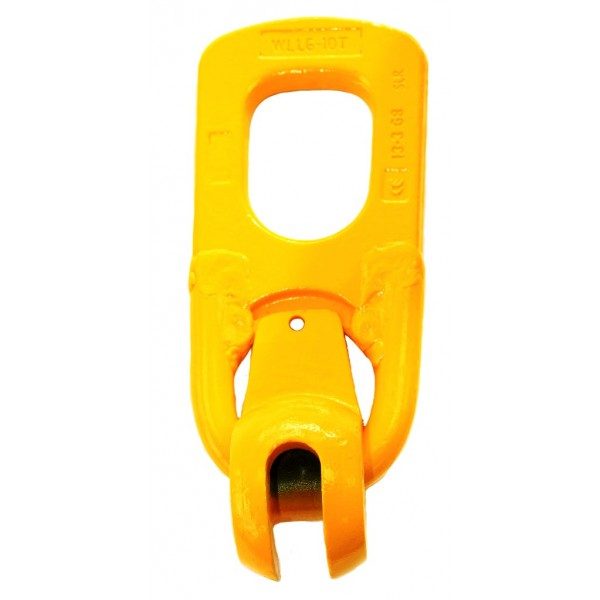

G80 Concrete Lifting Clutch

From $79.00

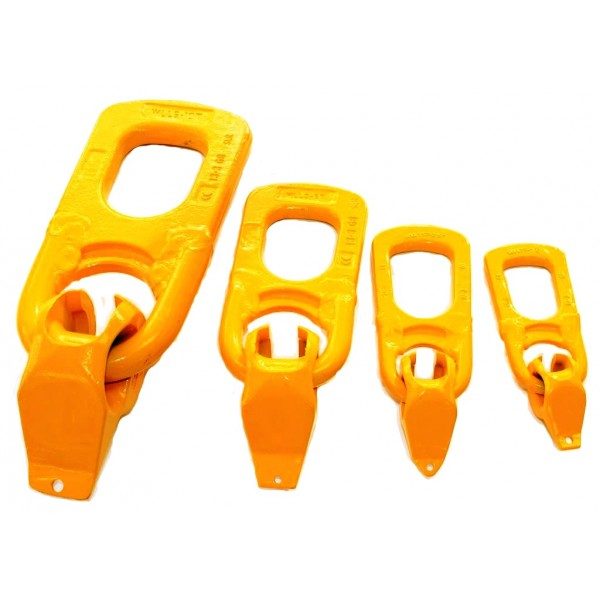

The G80 Concrete Lifting Clutch, also known as a swift lift or panel lifter, is a swivel lifting clutch for lifting precast concrete such as construction panels, pipes and columns. It is marked with the WLL and serial number, and comes in 1.3t to 32t.

Warning: the anchor and the clutch must be matched.

Add to WishlistAlready In Wishlist
Add to Wishlist
Add to quote
SKU: N/A

Need compliance tags? Click here to purchase

Description

SKU WLL (t) Weight (kg) Dimensions (mm)
A B C D E F H M N L
3119 1.3 1 33 12 80.4 70.5 45 73 157 11.5 6.5 181
3120 2.5 1.5 41 14 99 85 57 88 190 16 9 220
3121 5 3.3 57 16 133 88 69 110 233 22 11 271
3122 10 10 74 27 176 116 83 161 336.5 30 16 386
8575 20 20.37 110 32 228 133.5 107.5 182 437 42 23 497
158253 32 47 155 40 325 188 160 272 555 52 28.5 760
  • Cast super alloy claw with a forged alloy steel lifting ring.
  • 100% magnaflux crack tested, with a powder coated finish.
  • Factory proof loaded to 2 times the WLL, to AS 3850.1:2015.
  • Safety factor 5:1 (4:1 on the 20t).
  • Supplied with certification.
  • Marked with the WLL, serial number and brand.
  • Annual proof load at 1.2 times the WLL (AS 3850).
  • Check the clutch regularly against the wear table and remove it from service if worn.
