Home / Products / Lifting Equipment / Grade 80 Lifting Components / G80 Hooks / G80 Clevis Grab Hook with Pin

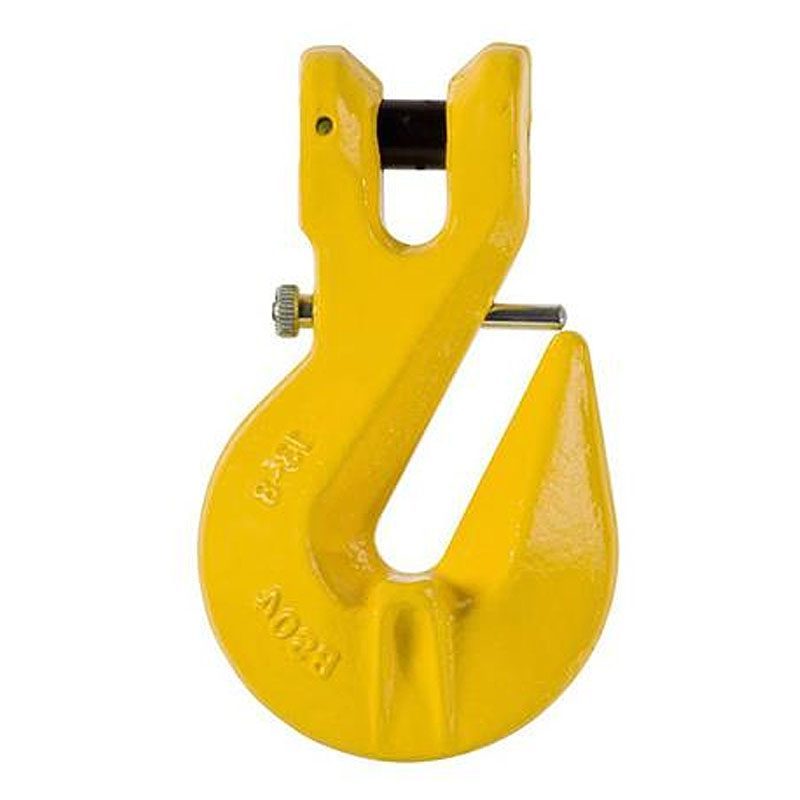

G80 Clevis Grab Hook with Pin

From $20.00

The G80 Clevis Grab Hook with Pin is a shortening hook for chain slings, with a safety pin that stops the chain from coming out of the hook. Supporting lugs mean there is no reduction of the working load limit, and the clevis connects straight to the chain. It comes in 6mm to 16mm.

Add to WishlistAlready In Wishlist
Add to Wishlist
Add to quote
SKU: N/A

Description

SKU Size (mm) WLL (t) Weight (kg) Dimensions (mm)
A B E M L L1
8961 6 1.12 0.205 8 32 8 43.5 75 40
8962 7/8 2 0.33 9.5 35 11 50 89 43
8963 10 3.2 0.88 12.5 45.5 13 70.5 126.5 74
8964 13 5.3 1.85 15 53 16.5 96 163.5 92
Enquire 16 8 3.24 18.5 69.5 19 112.5 183.5 98
  • Safety pin stops the chain coming out of the hook.
  • Supporting lugs, so there is no reduction of the WLL when shortening.
  • Clevis type, connects straight to the chain.
  • Grade 80 alloy steel, forged, quenched and tempered.
  • Marked with chain size, batch number, grade and manufacturer quality mark.
  • Batch tested, with test certificates available on request.
  • Fatigue tested to more than 20,000 cycles.
  • Certified to AS 3776. Safety factor 4:1.
