Home / Products / Lifting Equipment / Lifting Clamps / Horizontal Lifting Clamps / Horizontal Plate Clamp Set

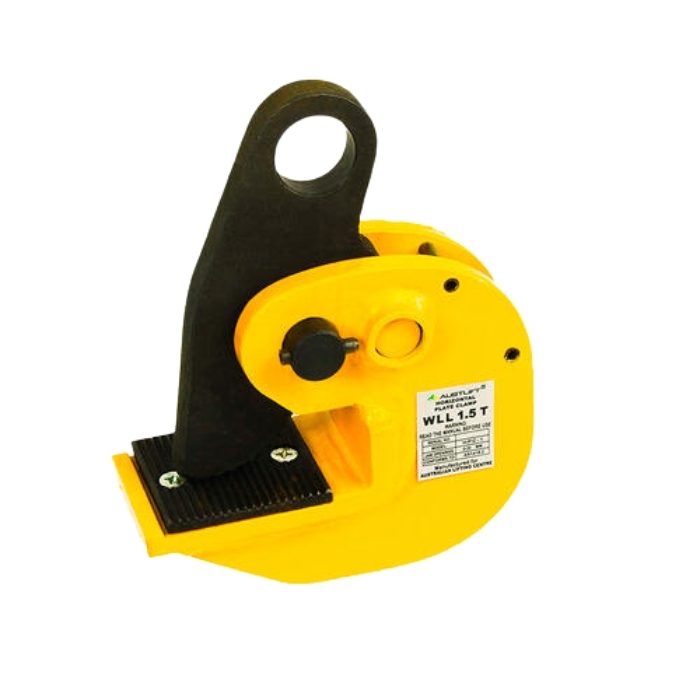

Horizontal Plate Clamp Set

From $170.00

Horizontal Plate Clamps are used to lift and transport steel plates and other non-deflecting materials. Useable on materials with a hardness rating up to 37RC.

Horizontal Plate Clamps are rated and sold as a Pair.

Not all sizes held in stock, please call to check

Add to WishlistAlready In Wishlist
Add to Wishlist
Add to quote
SKU: N/A

Need compliance tags? Click here to purchase

Description

Do not Lift plates with mill scale that prevent the gripping of the surfaces of the clamp from making positive contact with the base metal.

PAIR WLL (T) SKU Weight (kg) Dimensions (mm)
A B C D E
0.75 125053 3.5 0-25 125 175 51 Ø25
1 11390 4 0-30 161 205 60 Ø30
1.5 1068 4.3 0-30 161 205 60 Ø30
2 125054 7.2 0-40 175 245 65 Ø30
3 1070 8 0-45 180 250 65 Ø30
5 1072 9 0-55 185 260 70 Ø30
  • Suitable for horizontal lifting and transport of steel plates and other non-deflecting materials.
  • Manufactured from high quality carbon steel.
  • Simple construction and operation.
  • The screw jaw of the body can be changed and also has a safety button.
  • Complies with AS4991.2004 standard.
  • Working Load Limit determined by PAIR.
