Tiger CPL Pipe Lifting Clamp

From $395.00 From $316.00

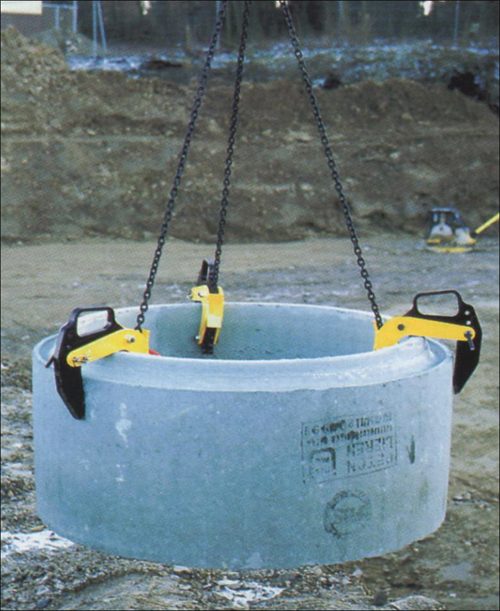

  • The Tiger CPL pipe lifting clamps are used in sets of three for the vertical transportation of concrete pipe sections with a diameter of up to 2m.
  • The jaw capacity is designed for pipe thickness of 40-220mm for the 1.5t capacity set and 90-220mm for the 3.0t capacity set.
  • Attachment and removal of the clamps from the pipe is extremely easy due to the simple and straightforward design.
  • For concrete according to DIN4034. The capacities shown in the table are based on a set of three clamps.
Clear
SKU: N/A

Description

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Data Table

CPL-Pipe Lifting Clamp

Product Capacity (tonne) Dimensions (mm) Net Weight (kg)
Jaw Opening A B C D E
CPL-0150 1.5 40-120 415 361 20 54 64 12.3
CPL-0300 3.0 90-220 490 486 25 61 70 27.5

Product codes

Code: 100754 – CPL-0150

Code: 100755 – CPL-0300
