Yoke Bullet Style Lifting Swivel

Name: Yoke Bullet Style Lifting Swivel
SKU: 62374
Availability: InStock

From $1,205.00

The Yoke Bullet Style Lifting Swivel is an angular contact bearing swivel for wire rope lines, designed for low starting torque and high rotation speed. It is zinc plated for corrosion resistance and has grease fittings for long life. It comes in 0.75t to 25t.

Please allow 10 working days for delivery of this item.

Working Load Limit

Clear

Add to WishlistAlready In Wishlist

Add to quote

SKU: N/A

Description

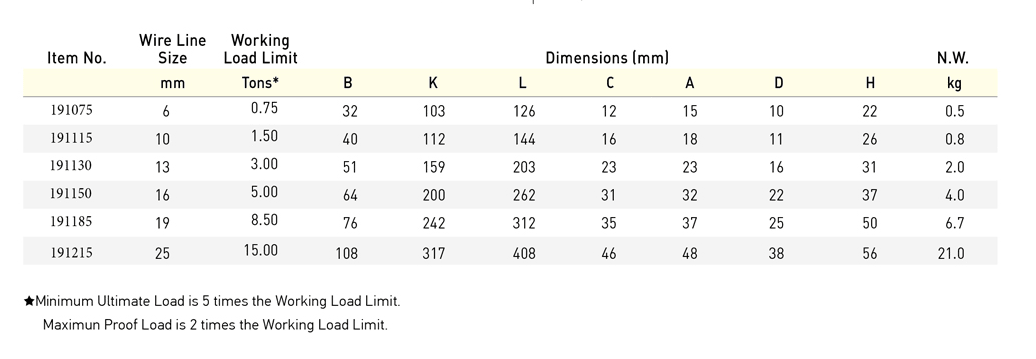

SKU

WLL (t)

Wire Line Size (mm)

158123

0.75

158124

1.5

158125

158126

158127

8.5

158128

158585

Angular contact bearing, low starting torque and high rotation speed.

Made from the highest grade material available. Safety factor 5:1.

Proof loaded to 2 times the WLL.

Zinc plated for corrosion resistance, with grease fittings.

All parts 100% magnaflux crack detected.

Fatigue rated to 20,000 cycles at 1.5 times the WLL.

Batch numbered for traceability, with a digital chip embedded with the certificate.
