G80 Weld On Ring

From $21.00

The G80 Weld On Ring is a weld-on lifting point that can be welded to any carbon steel surface. Use it as a lifting point, a fixed anchor point for spreader beams, or a lashing point for load restraint, with double the WLL for pull applications.

Add to quote
SKU: N/A

Description

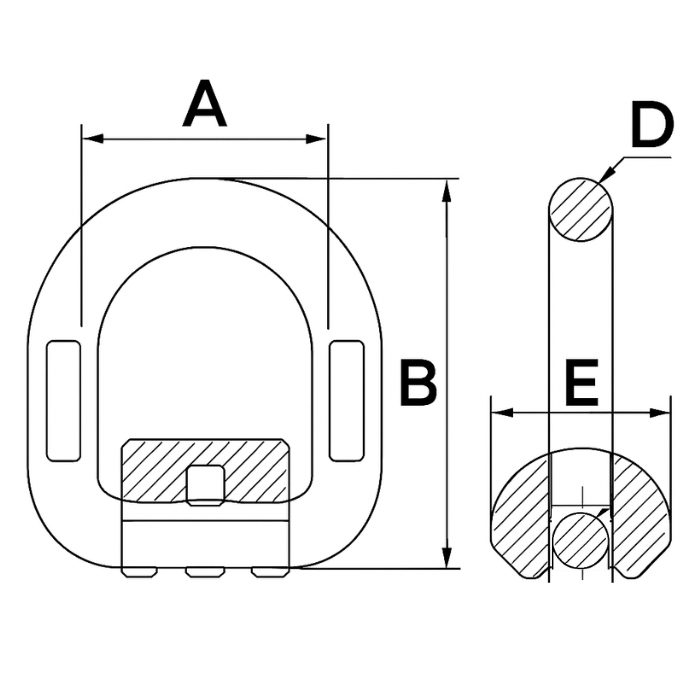

SKU WLL Lift (t) WLL Pull (t) Breaking Load (t) Weight (kg) Dimensions (mm)
A B D E
2343 1 2 4.48 0.47 41 78.5 13 38
2344 2 4 8 0.51 42 88 14 40
2345 3 6 12.6 0.69 46 94 17 43
2346 5 10 21.2 1.46 55 118 22 61
2665 8 16 32 2.52 70 141 26.5 70.5
5043 15 30 60 5.79 97 188 34 90
  • Welds to any carbon steel surface as a lifting point.
  • Can be used as an anchor point for load restraint, with double the WLL for pull applications.
  • Spring inside the ring for better pivot control.
  • 100% magnaflux crack detected.
  • Complies with AS 3776 and EN 1677.
  • Safety factor 4:1.
  • Welding must only be carried out by a qualified welder, following the welding instructions supplied.

Welding Instructions – G80 D Ring (PDF)
