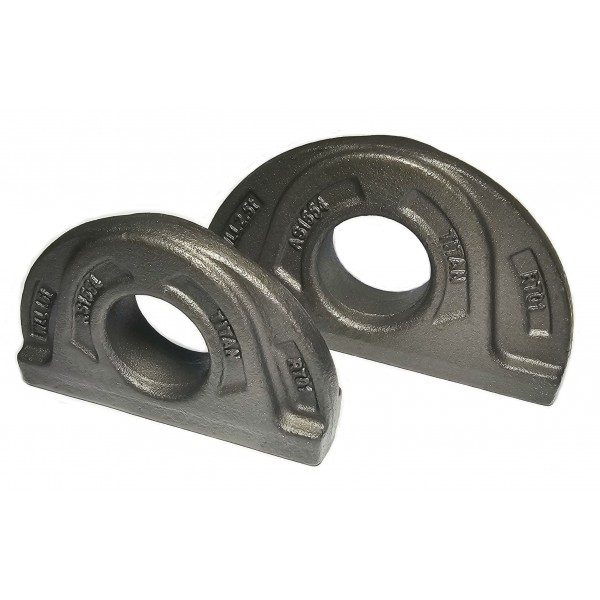

Titan Weld On Lifting Deck Plate

From $36.00

The Titan Weld On Lifting Deck Plate is a forged weld-on lifting point rated to suit G100 lifting components. It gives the full WLL at all angles, and double the WLL for lashing.

Add to quote
SKU: N/A

Description

SKU Eye (mm) WLL Lift (t) WLL Pull (t)
159069 30 1.6 3.2
159070 35 2.5 5
159071 45 4 8
159072 60 6.7 13.4
  • Rated to suit G100 lifting components.
  • Forged steel, Grade 300PLUS.
  • Full lifting WLL at all angles.
  • Double the WLL for lashing (pull) applications.
  • Safety factor 4:1.
  • Welding must be carried out by a qualified person to AS 1554.
