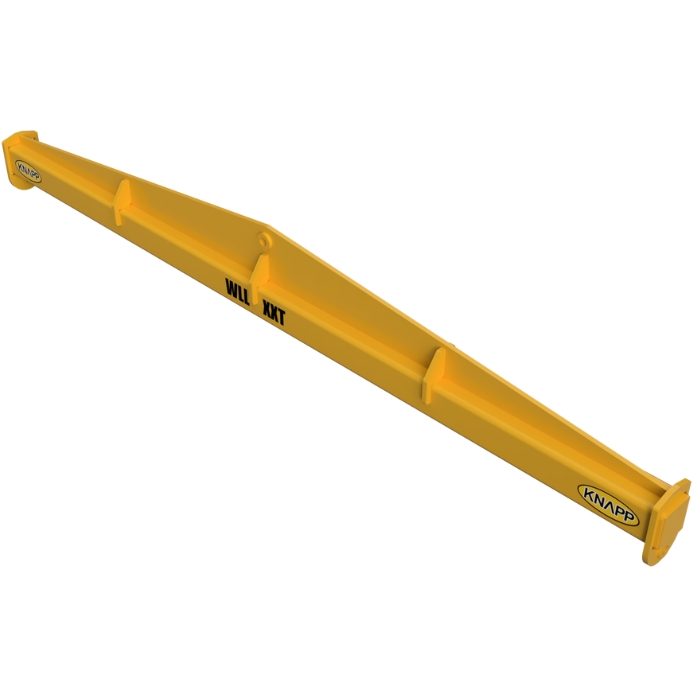

Description
- Lifts from a single top centre hole.
- Lengths from 1m to 4m.
- WLL from 2t to 20t.
- Sizes are listed by length and WLL.
- Certified to AS 4991-2004 Lifting Devices.
- Powder coated safety yellow.
- 100% New Zealand made.
- Heavy duty construction.
| SKU |
Size |
WLL (t) |
Top Hole Shackle (t) |
Lug Shackle (t) |
Weight (kg) |
Dimensions (mm) |
| A |
X |
| 125588 |
3t 1m |
3 |
9.5 |
3.2 |
21 |
1000 |
237 |
| 125589 |
5t 1m |
5 |
9.5 |
6.5 |
28 |
1000 |
254 |
| 125590 |
6.5t 1m |
6.5 |
12 |
6.5 |
35 |
1000 |
263 |
| 125591 |
10t 1m |
10 |
17 |
12 |
49 |
1000 |
272 |
| 125592 |
15t 1m |
15 |
25 |
17 |
72 |
1000 |
290 |
| 125593 |
20t 1m |
20 |
35 |
25 |
92 |
1000 |
311 |
| 125594 |
2.5t 1.5m |
2.5 |
9.5 |
3.2 |
30 |
1500 |
238 |
| 125595 |
3t 1.5m |
3 |
9.5 |
3.2 |
39 |
1500 |
248 |
| 125596 |
4.5t 1.5m |
4.5 |
12 |
4.7 |
49 |
1500 |
260 |
| 125597 |
7t 1.5m |
7 |
17 |
8.5 |
72 |
1500 |
265 |
| 125598 |
10t 1.5m |
10 |
25 |
12 |
96 |
1500 |
283 |
| 125599 |
14t 1.5m |
14 |
25 |
17 |
112 |
1500 |
316 |
| 125600 |
3t 2m |
3 |
4.7 |
3.2 |
46 |
2000 |
264 |
| 125602 |
4t 2m |
4 |
6.5 |
4.7 |
58 |
2000 |
277 |
| 125603 |
5t 2m |
5 |
8.5 |
6.5 |
85 |
2000 |
285 |
| 125604 |
7t 2m |
7 |
9.5 |
8.5 |
103 |
2000 |
307 |
| 125605 |
8t 2m |
8 |
9.5 |
8.5 |
120 |
2000 |
336 |
| 125606 |
12t 2m |
12 |
17 |
12 |
165 |
2000 |
371 |
| 125607 |
2.5t 3m |
2.5 |
4.7 |
3.2 |
86 |
3000 |
278 |
| 125601 |
4t 3m |
4 |
6.5 |
4.7 |
125 |
3000 |
288 |
| 125608 |
5t 3m |
5 |
8.5 |
6.5 |
149 |
3000 |
310 |
| 125609 |
6t 3m |
6 |
8.5 |
6.5 |
176 |
3000 |
335 |
| 125610 |
8t 3m |
8 |
9.5 |
8.5 |
238 |
3000 |
402 |
| 125611 |
2t 4m |
2 |
4.7 |
3.2 |
111 |
4000 |
278 |
| 125612 |
3t 4m |
3 |
6.5 |
3.2 |
162 |
4000 |
284 |
| 125613 |
3.5t 4m |
3.5 |
6.5 |
4.7 |
194 |
4000 |
313 |
| 125614 |
4.5t 4m |
4.5 |
6.5 |
4.7 |
225 |
4000 |
338 |
| 125615 |
6.5t 4m |
6.5 |
8.5 |
6.5 |
307 |
4000 |
405 |

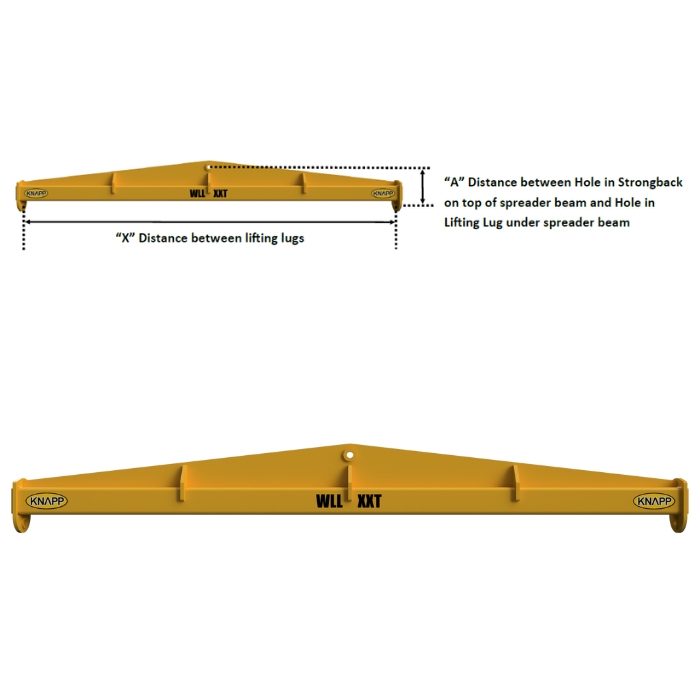

X = length. A = distance from the top centre hole to the end lug hole.
These spreader beams are not designed to lift loads using fork pockets. Use all lifting devices in line with the Lifting Devices Code of Practice 2012.
