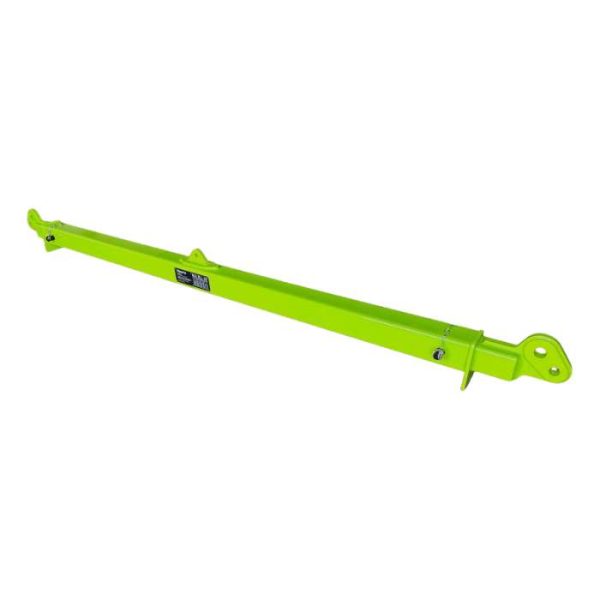

Telescopic Spreader Beam 20t 6m (TSB1206)

The Maxirig Telescopic Spreader Beam 20t 6m (TSB1206) suits a wide range of lifting applications as a spreader bar in the 60°, 90° and 120° positions, and can also be used as a lifting beam from the centre lug. Supplied certified to AS 4991-2004 with a proof load test certificate and MPI welding report.

Not held in stock, please call for a delivery time frame.

Description

Specification Value
Product Code TSB1206
WLL 20t
Maximum length 6m
Tare Weight 215kg
Lift Lugs (top) suit 17t Grade S safety bow shackle
Load Lugs (lower) suit 12t Grade S safety bow shackle
Centre Lug suits 4.7t Grade S safety bow shackle
  • Works as a spreader bar in the 60°, 90° and 120° positions.
  • Can be used as a lifting beam from the centre lug.
  • Tare weight excludes shackles and rigging.
  • Supplied certified to AS 4991-2004.
  • Includes a proof load test certificate and MPI welding report.

TSB1206 Brochure (PDF)
