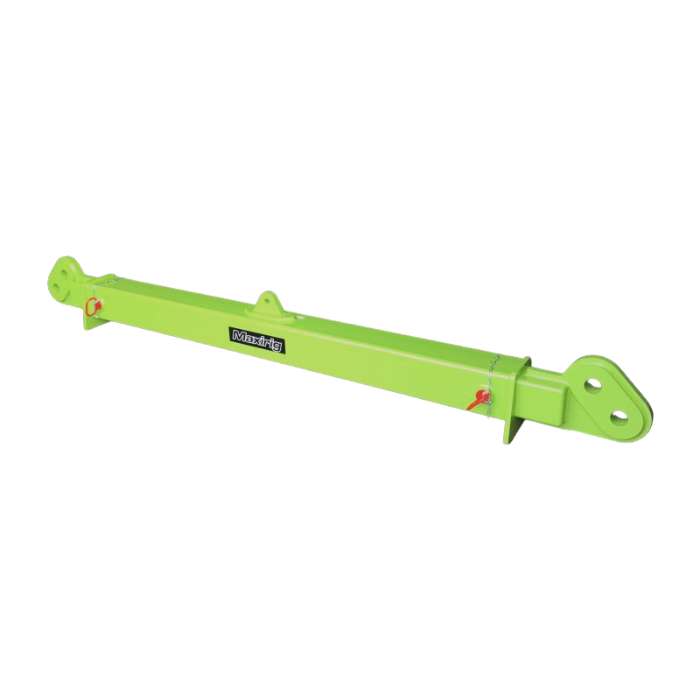

Telescopic Spreader Beam 80t 4m (TSB1804)

The Maxirig Telescopic Spreader Beam 80t 4m (TSB1804) suits a wide range of lifting applications as a spreader bar in the 60°, 90° and 120° positions, and can also be used as a lifting beam from the centre lug. Supplied certified to AS 4991-2004 with a proof load test certificate and MPI welding report.

Not held in stock, please call for a delivery time frame.

Description

Specification Value
Product Code TSB1804
WLL 80t
Maximum length 4m
Tare Weight 480kg
Lift Lugs (top) suit 55t Grade S safety bow shackle
Load Lugs (lower) suit 55t Grade S safety bow shackle
Centre Lug suits 12t Grade S safety bow shackle
  • Works as a spreader bar in the 60°, 90° and 120° positions.
  • Can be used as a lifting beam from the centre lug.
  • Tare weight excludes shackles and rigging.
  • Supplied certified to AS 4991-2004.
  • Includes a proof load test certificate and MPI welding report.

TSB1804 Brochure (PDF)
