From $2.70

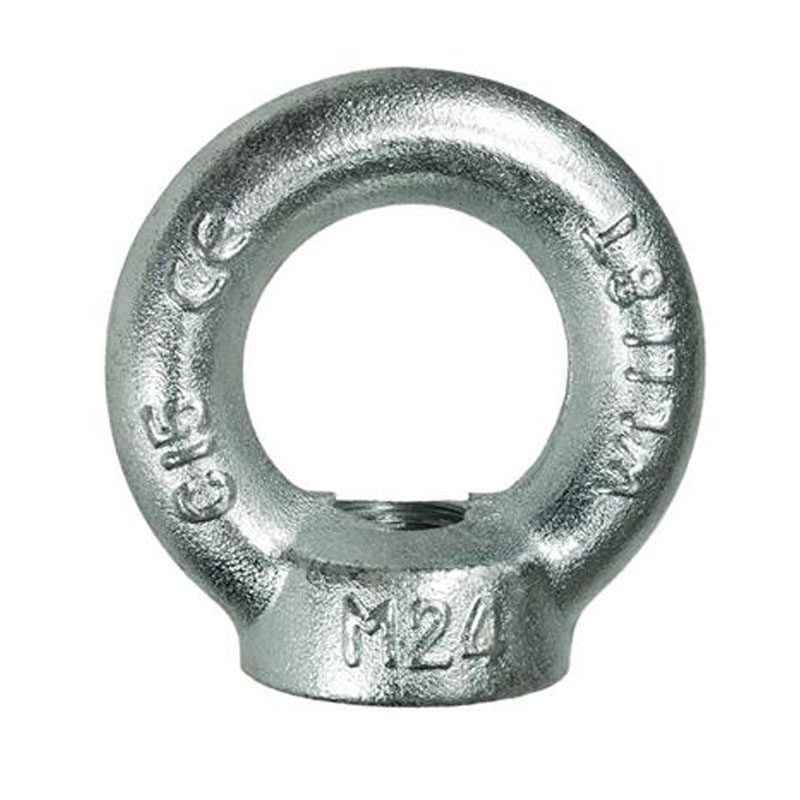

The DIN582 Zinc Eye Nut is a zinc plated carbon steel eye nut with a large eye, used as a removable lifting point wherever a rated stud or bolt can be used. It can also terminate chain, wire rope and other assemblies, in M6 to M48.

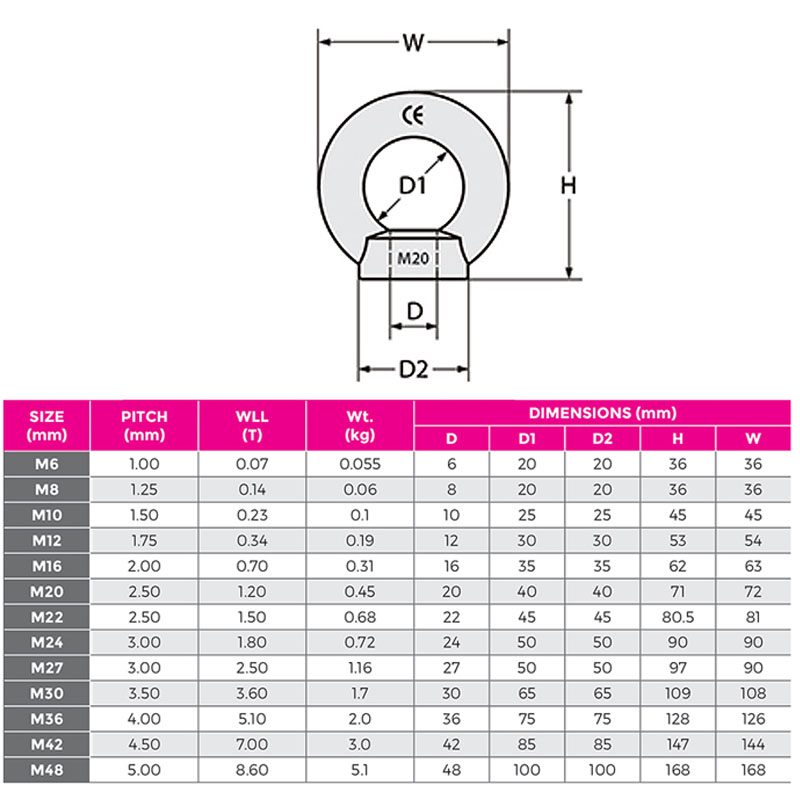

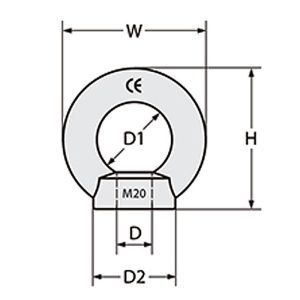

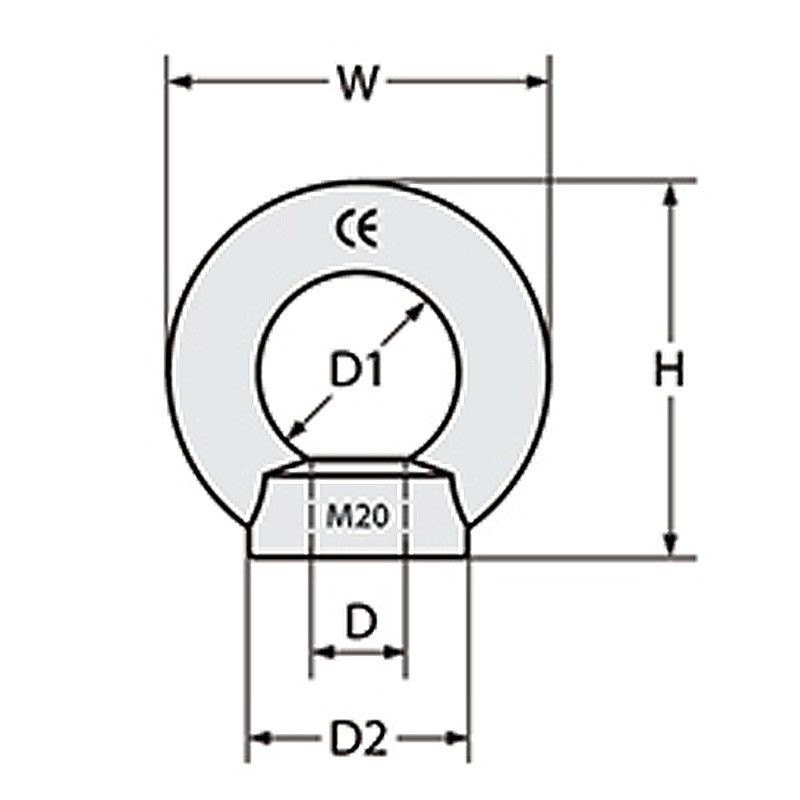

| SKU | Thread | Pitch (mm) | WLL (t) | Weight (kg) | Dimensions (mm) | ||||
| D | D1 | D2 | H | W | |||||
| 101010 | M6 | 1.00 | 0.07 | 0.055 | 6 | 20 | 20 | 36 | 36 |
| 5965 | M8 | 1.25 | 0.14 | 0.06 | 8 | 20 | 20 | 36 | 36 |
| 5966 | M10 | 1.50 | 0.23 | 0.1 | 10 | 25 | 25 | 45 | 45 |
| 5967 | M12 | 1.75 | 0.34 | 0.19 | 12 | 30 | 30 | 53 | 54 |
| 5968 | M16 | 2.00 | 0.70 | 0.31 | 16 | 35 | 35 | 62 | 63 |
| 101011 | M18 | 2.20 | 0.93 | 0.38 | 18 | 37.5 | 37.5 | 66.5 | 67.5 |
| 5969 | M20 | 2.50 | 1.20 | 0.45 | 20 | 40 | 40 | 71 | 72 |
| 126077 | M22 | 2.50 | 1.50 | 0.68 | 22 | 45 | 45 | 80.5 | 81 |
| 5970 | M24 | 3.00 | 1.80 | 0.72 | 24 | 50 | 50 | 90 | 90 |
| 126078 | M27 | 3.00 | 2.50 | 1.16 | 27 | 50 | 50 | 97 | 90 |
| 126079 | M30 | 3.50 | 3.60 | 1.7 | 30 | 65 | 65 | 109 | 108 |
| 126080 | M36 | 4.00 | 5.10 | 2.0 | 36 | 75 | 75 | 128 | 126 |
| 126081 | M42 | 4.50 | 7.00 | 3.0 | 42 | 85 | 85 | 147 | 144 |
| 126082 | M48 | 5.00 | 8.60 | 5.1 | 48 | 100 | 100 | 168 | 168 |
