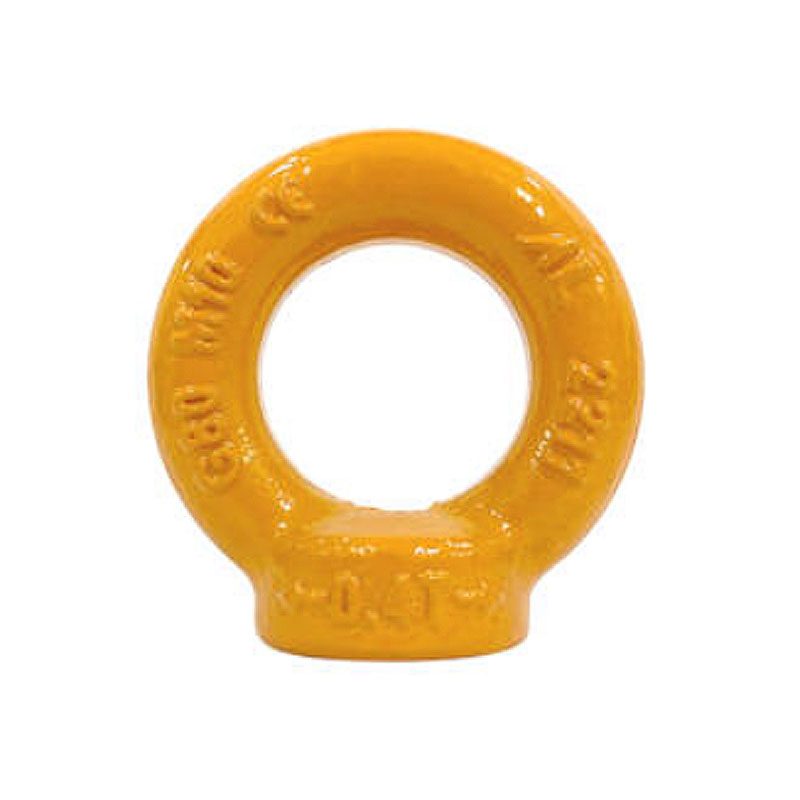

G80 Lifting Eye Nut

G80 Eye Nut

From $16.50

The G80 Eye Nut is a forged Grade 80 lifting eye nut, used as a removable lifting point wherever a rated stud or bolt can be used. It comes in metric threads from M8 to M48.

Size

Clear

Add to WishlistAlready In Wishlist

SKU: N/A

Need compliance tags? Click here to purchase

Description

SKU	Thread	Pitch (mm)	WLL 0 degrees (t)	WLL 90 degrees (t)	Weight (kg)
8942	M8	1.25	0.8	0.2	0.04
8943	M10	1.5	1	0.4	0.09
8944	M12	1.75	2	0.8	0.16
8945	M16	2	4	1.6	0.24
8946	M20	2.5	6	2.6	0.36
8947	M24	3	8	3.2	0.72
8948	M30	3.5	12	4.8	1.32
8949	M36	4	16	7	2.08
8950	M42	4.5	24	12	2.5
8951	M48	5	32	15	2.8

Grade 80 forged alloy steel, quenched and tempered.
100% magnaflux crack detected.
Powder plastified finish.
Proof tested and certified to AS 2317.1:2018 (T) and EN 1677.
Marked with SLR, CE, size, WLL and batch number.
Metric standard thread.
