Home / Products / Rigging Hardware / Galvanised Wire Rope Grips & Thimbles / DIN1142 Wire Rope Grip Gold 8mm

8mm Wire Rope Grip Din1142 Gold

SKU: 101263

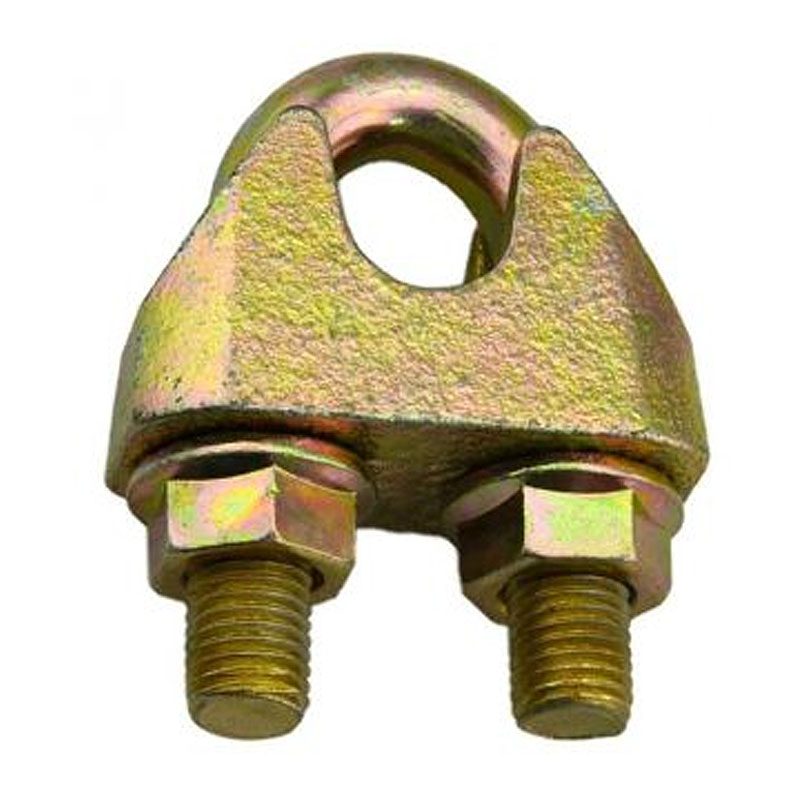

DIN1142 Wire Rope Grip Gold 8mm

$0.95 + G.S.T (inc G.S.T $1.09)

The DIN1142 Wire Rope Grip Gold 8mm is a wire rope grip made to EN 13411-5 (the DIN 1142 pattern), with a gold finish. It suits 8mm wire rope, for securing a rope end or forming an eye.

Description

SKU	Rope Size (mm)	Weight (kg)	Thread D
101263	8	0.082	M8

Dimensions (mm)
A	B	C	E	F	G
18	20	20	18	39	41

Made to EN 13411-5 (DIN 1142 pattern).
Gold finish.
Use at least the recommended number of grips per termination, with the saddle on the live (load bearing) side of the rope.

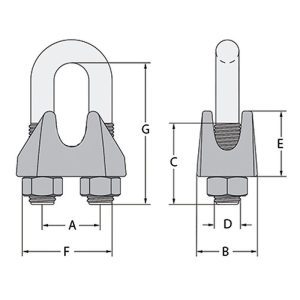

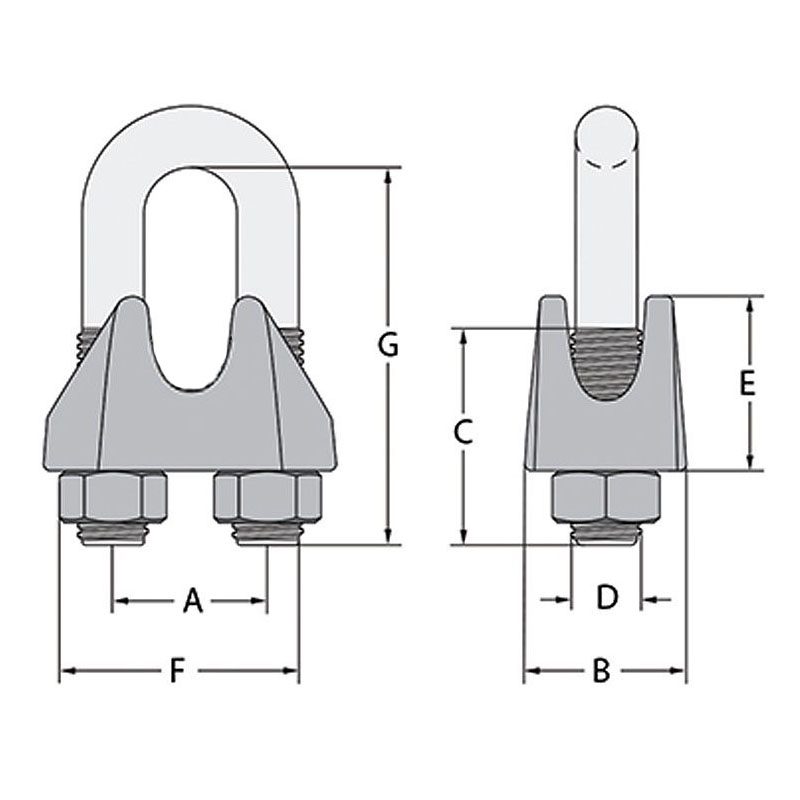

Dimension Diagram
