Grade S Safety Pin Bow Shackle

From $5.12

Shackle Grade ‘S’ Bow Galvanised with safety pin most commonly used for lifting applications, providing more permanent connections to chain, wire rope and other rated fittings within the marine, agricultural, mining and engineering industries.

Ordered by WLL and Pin Size for your convenience.

Add to WishlistAlready In Wishlist
Add to Wishlist
Add to quote
SKU: N/A

Need compliance tags? Click here to purchase

Description

Size (mm) Sku WLL (T) Weight (kg) Dimensions (mm)
B D d E L W
11 7223 1 0.16 27 11 10 25 37 18
13 3249 1.5 0.22 29 13 11.5 27 43 19
8 3250 2 0.36 33 16 13 33 48 21
10 3251 3.2 0.76 43 19 16 40 61 27
11 3252 4.7 1.23 51 22 19 48 82 32
13 3253 6.5 1.79 58 25 22 54 84 37
16 3541 8.5 2.78 68 29 25 60 95 43
19 3542 9.5 3.75 74 32 29 67 108 46
22 3543 12 5.31 83 35 32 76 119 52
25 3544 13.5 6.98 92 38 35 84 133 57
29 3545 17 9.44 98 44 38 92 146 60
32 3576 25 15.39 127 51 44 110 178 73
35 7428 35 23.71 92 38 35 84 133 57
38 125942 42.5 29.01 98 44 38 92 146 60
44 8013 55 44.58 127 51 44 110 178 73
51 8542 85 75 146 57 51 127 197 83
57 9302 120 129.31 160 63 57 143 222 95
63 Enquire 150 165.9 184 70 63 152 267 105
  • Manufactured from Grade S material in bow configuration with safety pin hot dipped galvanised.
  • Suitable for equipment that may vibrate to ensure pin will not dislodge during use.
  • The safety pin allows the pin to rotate during loading conditions.
  • Marked with working load limit in T, quality grade, batch numbered, nominal size in mm and supplier identification.
  • Proof tested to 2 x working load limit, with a minimum break force of 6 x working load limit.
  • Sizes available are from 11mm to 120mm Pin Size.

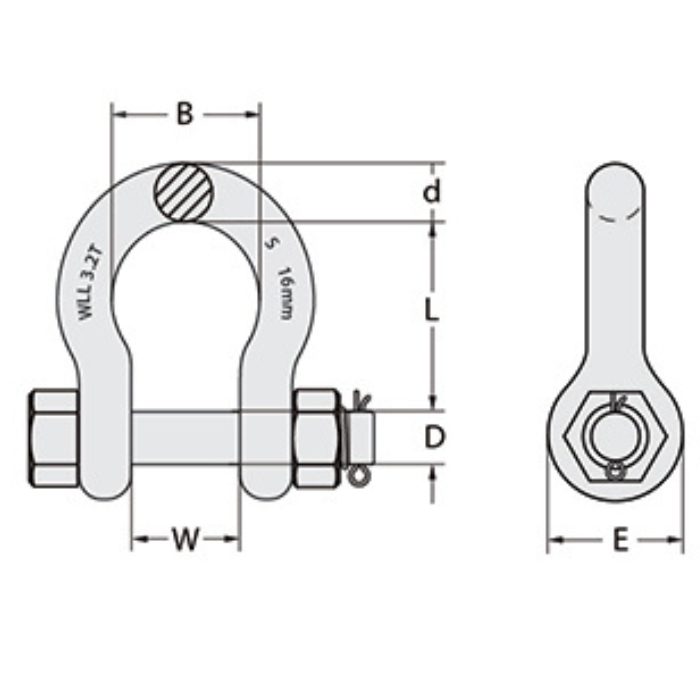

  • For more info see specifications of each size as per diagram.
