From $1.30
Grade S Screw Pin Dee Shackles are most commonly used for lifting applications, providing connections to chain, wire rope and other rated fittings within the marine, agricultural, mining and engineering industries.
Ordered by WLL and Pin Size for your convenience.
Need compliance tags? Click here to purchase

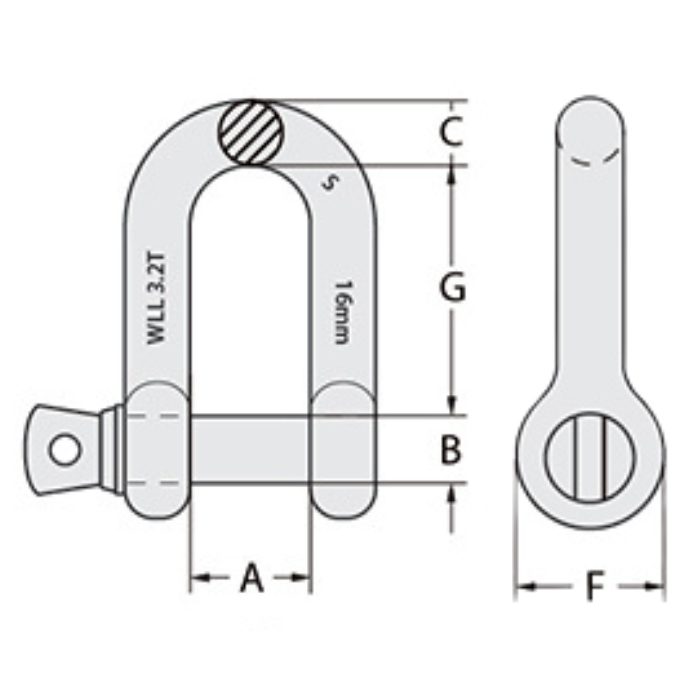

| Size (mm) | Sku | WLL (T) | Weight (kg) | Dimensions (mm) | ||||
| A | B | C | F | G | ||||
| 6 | 158998 | 0.5 | 0.05 | 12 | 8 | 6 | 17 | 22 |
| 8 | 2409 | 0.75 | 0.09 | 13 | 10 | 8 | 21 | 26 |
| 10 | 2402 | 1 | 0.14 | 17 | 11 | 10 | 25 | 32 |
| 11 | 2403 | 1.5 | 0.17 | 18 | 13 | 11 | 27 | 37 |
| 13 | 2404 | 2 | 0.29 | 21 | 16 | 13 | 33 | 41 |
| 16 | 2495 | 3.2 | 0.63 | 27 | 19 | 16 | 40 | 51 |
| 19 | 2406 | 4.7 | 1.02 | 32 | 22 | 19 | 48 | 60 |
| 22 | 2407 | 6.5 | 1.53 | 37 | 25 | 22 | 54 | 71 |
| 25 | 2408 | 8.5 | 2.41 | 43 | 29 | 25 | 60 | 81 |
| 29 | 158880 | 9.5 | 3.09 | 46 | 32 | 29 | 67 | 90 |
| 32 | 158881 | 12 | 4.31 | 52 | 35 | 32 | 76 | 100 |
| 35 | 158882 | 13.5 | 6.01 | 57 | 38 | 35 | 84 | 113 |
| 38 | 158993 | 17 | 8.03 | 60 | 44 | 38 | 92 | 124 |
| 44 | 158994 | 25 | 11.48 | 73 | 51 | 44 | 110 | 146 |
| 51 | 158995 | 35 | 20.42 | 83 | 57 | 51 | 127 | 171 |
| 57 | 158996 | 42.5 | 26.06 | 95 | 63 | 57 | 143 | 181 |
| 63 | 158997 | 55 | 38.8 | 105 | 70 | 63 | 152 | 203 |
