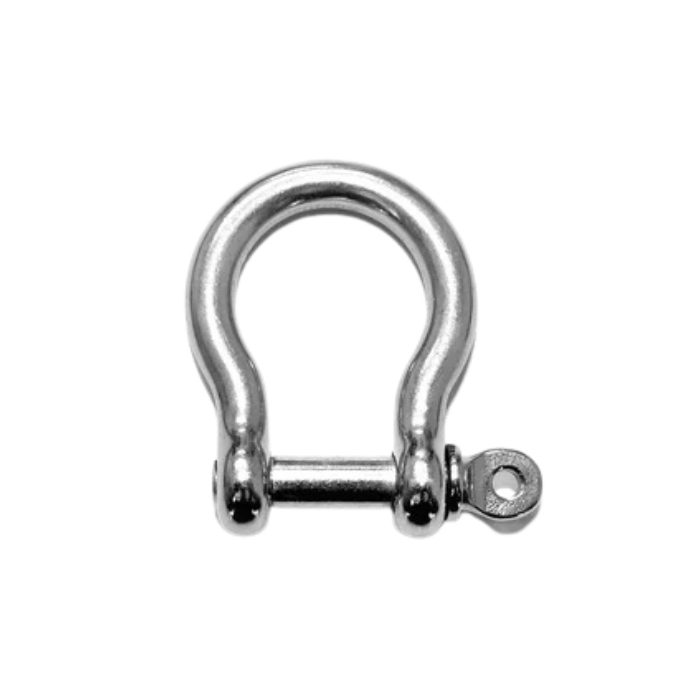

Stainless Steel Screw Pin Bow Shackle

From $4.60

The Stainless Steel Screw Pin Bow Shackle, also called an anchor shackle, has a larger rounded bow than a dee shackle. This lets it take a load from more angles with less side load on the shackle. Marine grade 316 stainless steel with a screw pin, from 4mm to 12mm.

Add to WishlistAlready In Wishlist
Add to Wishlist
Add to quote
SKU: N/A

Description

SKU Size (mm) Inside Width B (mm) Inside Length C (mm) Bow Width D (mm)
101112 4 9 19 13
101247 5 12 23 18
101248 6 14 25 20
101249 8 15 40 25
101250 10 20 45 35
101251 12 25 52 40

Size = body and pin diameter. B = inside width. C = inside length. D = inside width of the bow.

  • Marine grade 316 stainless steel.
  • Large bow takes loads from more angles.
  • Screw pin.
  • Ideal for shade sails, marine rigging, balustrades and general fixing.

Not rated for lifting. Do not use for overhead lifting.
