Shackle - SS316 Dee

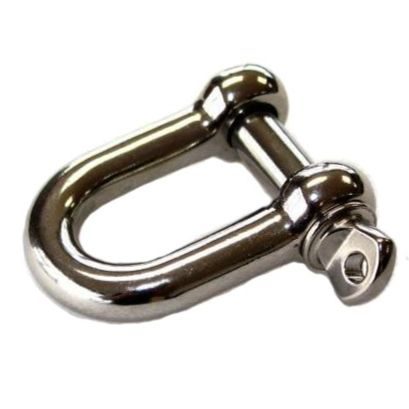

Stainless Steel Screw Pin Dee Shackle

From $3.90

The Stainless Steel Screw Pin Dee Shackle is a forged European style dee shackle in marine grade 316 stainless steel, with a screw pin. It is the most common shackle for joining chain, wire, rope and fittings in marine, shade sail and general rigging work, from 4mm to 25mm.

Add to WishlistAlready In Wishlist
Add to Wishlist
Add to quote
SKU: N/A

Description

SKU Size (mm) Inside Width B (mm) Inside Length C (mm)
6719 4 8 16
2259 5 11 17
2260 6 12 21
2261 8 17 28
2262 10 21 35
2263 12 25 41
2264 16 – –
9405 19 – –
9406 22 – –
9407 25 – –

Size = body and pin diameter. B = inside width between the ears. C = inside length.

  • Forged 316 stainless steel, European type.
  • Screw pin.
  • Ideal for shade sails, marine rigging, balustrades and general fixing.
  • Sizes 16mm and up are larger stock sizes with no catalogue dimensions.

Not rated for lifting. Do not use for overhead lifting.
