From $1.60

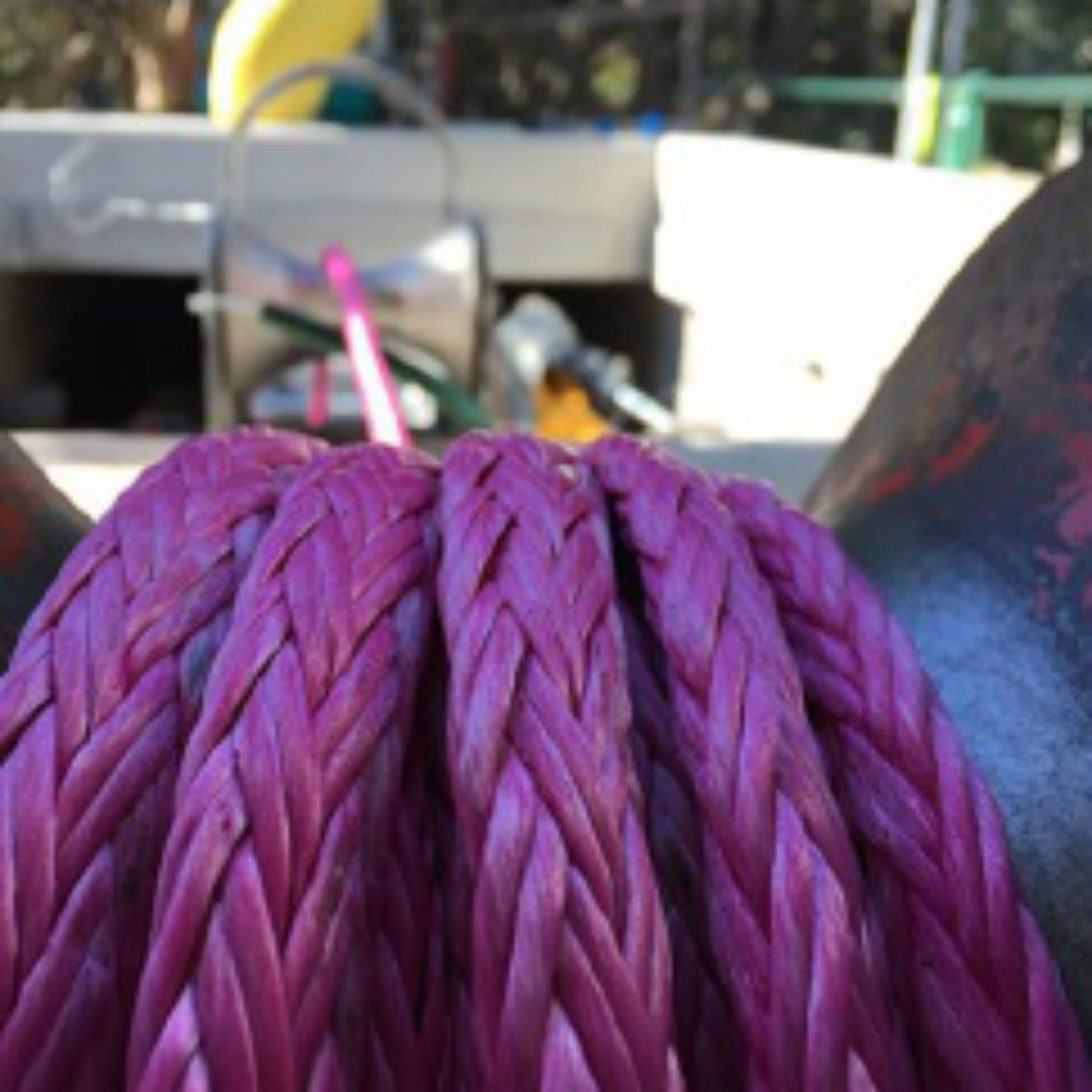

The Donaghys WinchLine UHMWPE 12 Strand Dyneema Braid is a high performance 12 strand single braid made from UHMWPE, one of the strongest fibres in the world. It is 8 times lighter and 70% stronger than steel wire rope, floats, and has an Armorcoat coating for abrasion resistance and grip on the winch drum. Sold per metre from 3mm to 30mm.
| SKU | Size (mm) | MBL (t) | Supplied As |
| 15044 | 3 | 1.4 | Per Metre |
| 15046 | 4 | 2.4 | Per Metre |
| 15047 | 5 | 3.4 | Per Metre |
| 15048 | 6 | 4.8 | Per Metre |
| 15050 | 8 | 7.3 | Per Metre |
| 15052 | 10 | 10.8 | Per Metre |
| 15054 | 12 | 17 | Per Metre |
| 15055 | 14 | 19.9 | Per Metre |
| 15057 | 16 | 26.1 | Per Metre |
| 15059 | 18 | 34.7 | Per Metre |
| 15060 | 20 | 45.3 | Per Metre |
| 15061 | 22 | 52.2 | Per Metre |
| 15062 | 24 | 61.3 | Per Metre |
| 15063 | 26 | 72.5 | Per Metre |
| 15064 | 28 | 84.4 | Per Metre |
| 15065 | 30 | 91.6 | Per Metre |
Features
Applications
Download WinchLine features and applications
MBL is the minimum breaking load, not a working load limit. Allow a suitable safety factor for your application.
WinchLine is available up to 96mm (653t MBL). Sizes without a price are price on application, please contact us.
