SKU: 15976

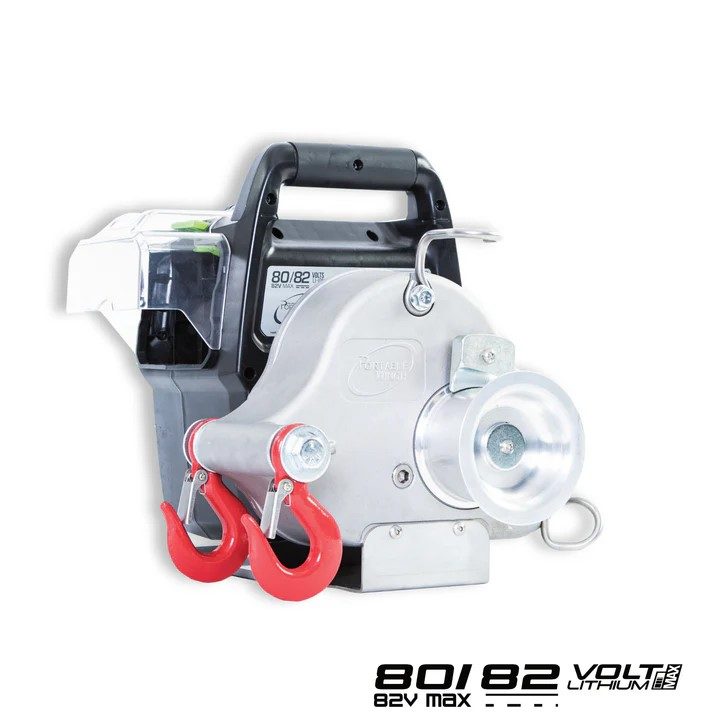

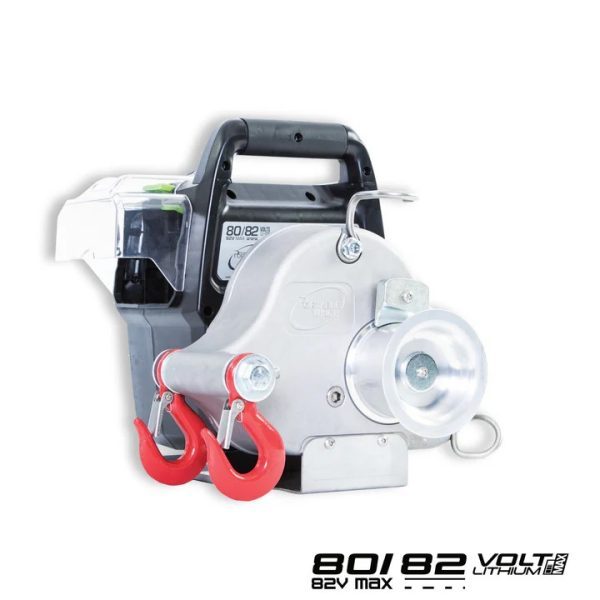

PCW3000-Li Battery Powered Pulling Winch

$1,760.00 + G.S.T (inc G.S.T $2,024.00)

The revolutionary winch.

Instant start with a button. Three speeds. Powerful motor. Interchangeable quick-charge batteries (not included). Indoor and outdoor use.

Design

With its push button starter, the PCW3000-Li is the simplest and fastest winch to start. It is also the first one to offer three operating speeds. In addition, it supports 80/82 V Lithium-Ion batteries, from 2 to 6 Ah, from several major brands (see the list of compatible batteries).

Performance

Depending on the selected speed, the weight of the pulled load and the chosen battery, the user benefits from a battery life ranging from 20 to 40 minutes of  continuous use, without loss of power.

If necessary, it only takes a few seconds to change battery on the spot and continue at the same pace. Batteries can be recharged to full capacity at any time during the discharge cycle without damaging the cells and the engine requires no maintenance. Designed to be used year-round, the winch can be operated down to -14 degrees Celsius without affecting its autonomy or performance.

The PCW3000-Li develops a remarkable pulling force of 1,000 kg without mechanical advantage. By using a pulley system, you can go up to five times (5x) this pulling force. That is, with two double pulleys, you could pull up to 5,000 kg!

Product total
Options total
Grand total
Add to quote
Product added to Quote successfully!
View Quote

Description

CAPACITY

Maximum Pulling Force With Standard Drum (metric) : 1,000 kg
Double Line Pulling Force With Standard Drum (metric) : 2,000 kg

SPEED

Speed 1 : 8.1 m/min
Speed 2 : 10 m/min
Speed 3 : 11.6 m/min

ROPE

Length : Unlimited
Pulling : Double braided with low stretch (not included)
Minimum Diameter (metric) : 10 mm
Maximum Diameter (metric) : 12 mm
Ideal diameter (metric) : 10 mm

ENGINE/MOTOR & GEAR BOX

Engine/Motor : 1.0 KW Electric Motor – all positions – 82V maximum with overload protection
Clutch : N/A – Direct Drive
Gear Box and Gears : Aluminium alloy gear box. Heat treated 3-stage helical spur gears. Shafts mounted on ball bearings. Oil bath lubrication.
Gear Ratio : 200:1
Brake : Anti-reversing roller clutch bearing
Work Cycle : Continuous

CAPSTAN DRUMS

Standard : 76 mm
Optional : N/A

WEIGHT & DIMENSIONS

Weight (metric) : 9,5 kg
Length (metric) : 30,8 cm
Width (metric) : 31,6 cm
Height (metric) : 30,9 cm

ANCHOR

Included : Polyester sling 60 mm x 2 m (PCA-1260)

WARRANTY

Private Use : 2 years
Commercial Use : 1 year
Engine/Motor : Portable Winch

OTHER

Certification : CE and IPX3

ADDITIONAL INFORMATION

Additional Information : Batteries, charger and other accessories sold separately. Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !
