SKU: 11937

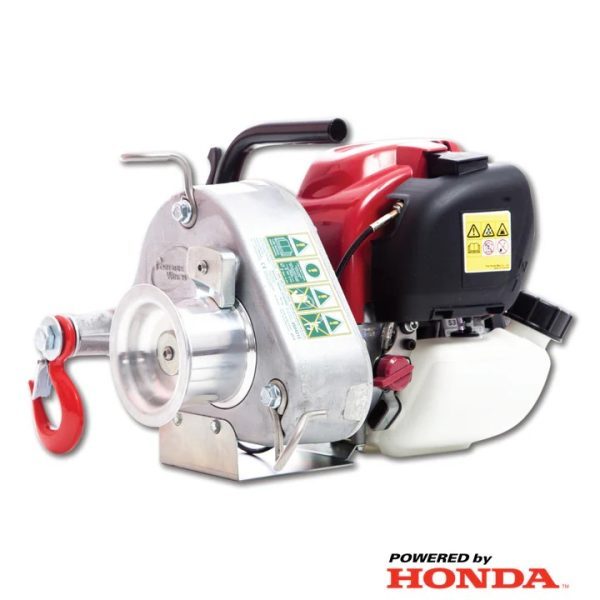

PCW3000 Portable Capstan Winch

$2,631.42 + G.S.T (inc G.S.T $3,026.13)

The PCW3000 Portable Capstan Winch is a light, compact petrol winch powered by a Honda GX35 4-stroke engine. At only 9.5kg with 700kg of single line pulling force, it is popular with hunters for retrieving game and with occasional loggers.

Add to quote

Description

  • The rope is tied to the load and wrapped three or four times around the capstan drum. With the engine running the drum turns continuously, and pulling on the free end of the rope makes the drum grip and pull the load.
  • Works with any length of 10-13mm low stretch double braided polyester rope (12mm recommended).
  • Honda GX35 engine runs in all positions.
  • Continuous work cycle, with an anti-reversing needle bearing brake.
  • One polyester anchor sling, 60mm x 2m (PCA-1260), is included with every winch.
  • Rope, pulleys, rope bags, anchors and transport cases are sold separately.
Specification Value
SKU 11937
Model PCW3000
Max Pulling Force 700kg
Speed 10m/min
Capstan Drum 76mm
Rope 10-13mm double braided polyester, 12mm recommended
Engine Honda GX35 4-stroke, all positions
Gear Ratio 200:1
Clutch Direct drive, drum turns at idle
Weight (dry) 9.5kg
Dimensions 35 x 28.9 x 26.1cm
Operating Temperature -17°C to 45°C
Warranty 2 years private use, 1 year commercial use, Honda international warranty on engine
Certification CE

Ideal for forestry and hunting. Recommended rope: Polyester Yacht Racing Braid.
