SKU: 126796

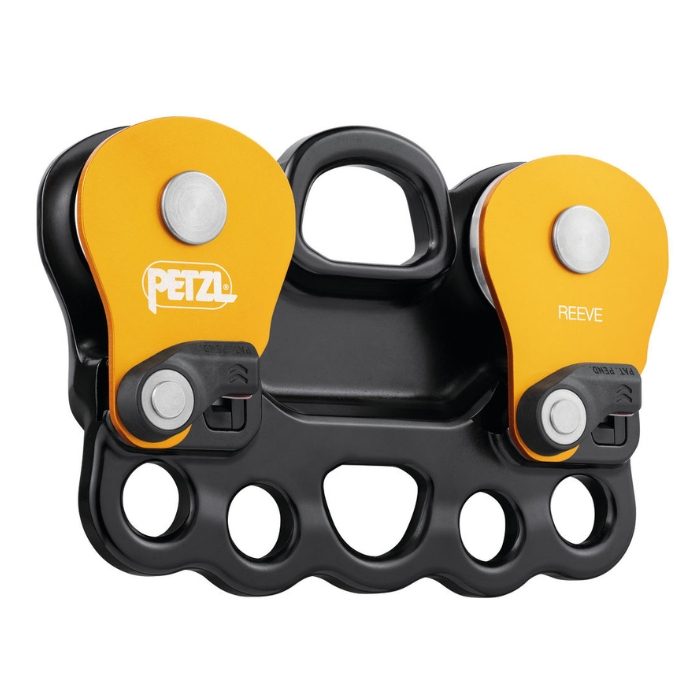

Petzl Reeve Carriage Pulley

$435.00 + G.S.T (inc G.S.T $500.25)

The Petzl Reeve Carriage Pulley combines two pulleys and a rigging plate in one compact unit to simplify rescue systems on tensioned highlines. It cuts the number of connectors and the height of the system.

Add to quote

Description

  • Triple action opening of the moving side plates, even with gloves, with red indicators when not locked.
  • Two large diameter sheaves on sealed ball bearings for efficient movement.
  • The system can be rigged before it goes on the main line.
  • Can be made redundant with two Reeve pulleys side by side, or a pulley on the upper hole.
  • Can be used in a haul system.
  • Holes take ropes or slings directly, and 19mm holes let most carabiner sleeves through.
  • Odd number of holes keeps the system centred and balanced.
  • Up to three people can be connected at once.
Specification Value
Petzl Code P005AA00
Rope Diameter 7-13mm
Sheave Diameter 38mm
Ball Bearings Yes
Efficiency 95%
Maximum Working Load 4kN x 2 = 8kN
Weight 650g
Breaking Strength 36kN
Material Aluminium, stainless steel and nylon
Certification CE EN 12278, NFPA 2500 General Use
Guarantee 3 years
