Description

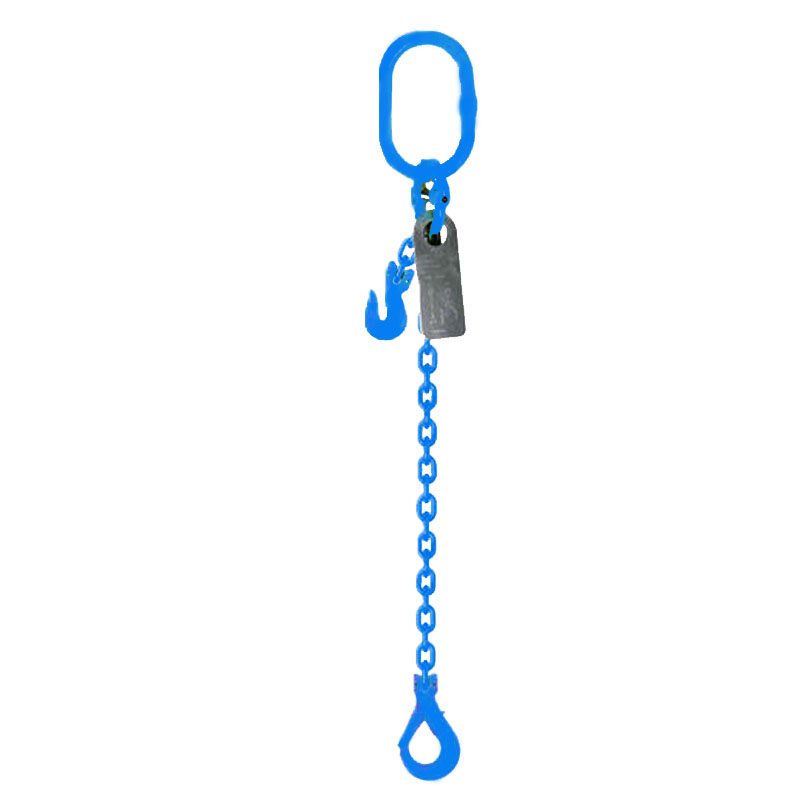

Grade 100 Chain Sling Working Load Limits
| Chain Size |
1 Leg |
2 Leg |
3 and 4 Leg |
| Vertical |
60° |
90° |
120° |
60° |
90° |
120° |
| 8mm |
2.50 |
4.25 |
3.50 |
2.50 |
6.50 |
5.25 |
3.75 |
| 10mm |
4.00 |
6.80 |
5.60 |
4.00 |
10.40 |
8.40 |
6.00 |
| 13mm |
6.70 |
11.39 |
9.38 |
6.70 |
17.40 |
14.00 |
10.00 |
| 16mm |
10.00 |
17.00 |
14.00 |
10.00 |
26.00 |
21.00 |
15.00 |
Working Load Limit in tonnes. Angles are the included angle between the legs.
- Leg length is the length of chain only and does not include fittings.
- Includes Inspection Tag.
- Ensure your order is correct before placing as cut chain will not be refunded.
- If you need a length we don’t list, please contact us.
- If the chain is choked, the Working Load Limit must be reduced by 20%.
- Assembled in accordance with the WorkSafe Approved Code of Practice for Load Lifting Rigging, manufacturer recommendations and LEENZ guidelines.
- Grade 100 chain to PAS 1061, with components to EN 1677-1 and AS 3776.
- All components are marked with the manufacturer, batch number, size and rating.
- Inspect before each use. A competent person must inspect the set at least every 12 months, or more often in severe conditions.
