Swivel Lifting Point

From $48.00

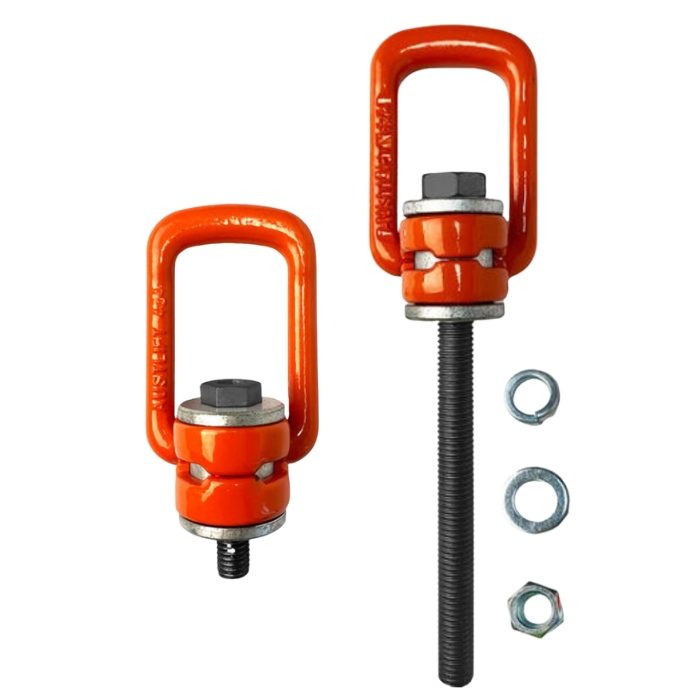

The Swivel Lifting Point is a ring bolt with a load ring that swivels 360 degrees and pivots 180 degrees. It is made from G80 alloy steel, and comes in short and long bolts from M8 to M42 with WLLs from 0.3t to 15t.

Short bolts are not held in store, allow about 2 weeks lead time.

Add to WishlistAlready In Wishlist
Add to Wishlist
Add to quote
SKU: N/A

Description

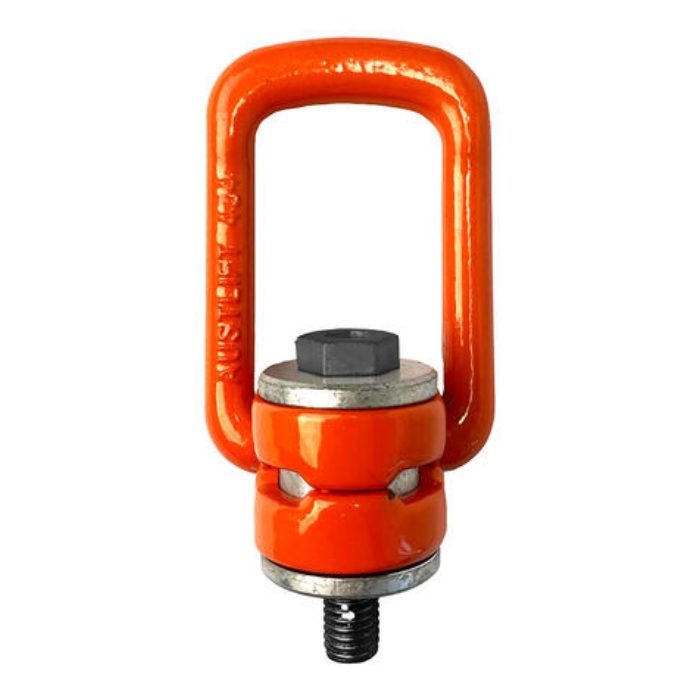

Short Bolt

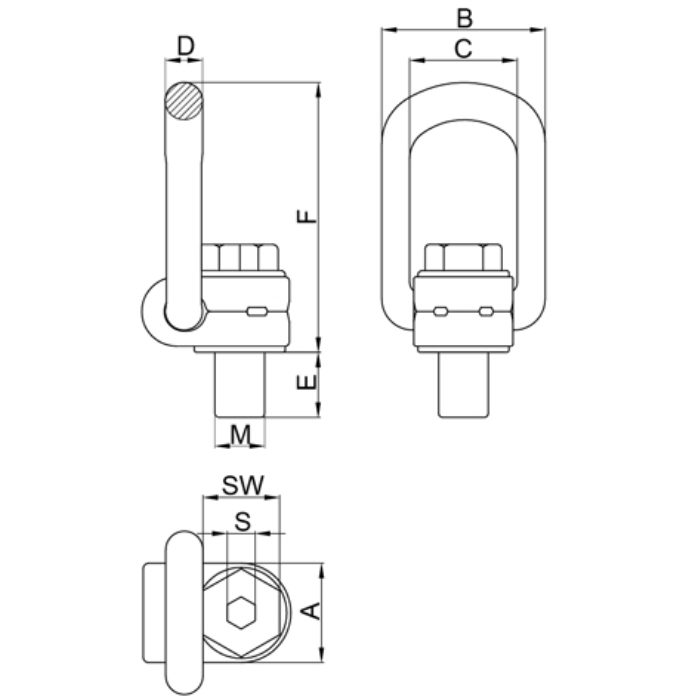

SKU Thread Thread Length E (mm) Pitch (mm) WLL (t) Weight (kg) Dimensions (mm)
A B C D F N SW
127099 M8 11 1.25 0.3 0.2 33 57 37.5 13 97.9 6 13
127100 M10 16 1.5 0.63 0.3 33 57 37.5 13 97.9 8 16
127101 M12 18 1.75 1 0.5 33 57 37.5 13 98 8 19
127102 M14 24 2 1.2 0.5 33 57 37.5 13 98 10 21
127103 M16 24 2 1.5 0.5 33 57 37.5 13 98 10 24
127104 M18 26 2.5 2 1.3 50 82 54 17.5 141.5 12 30
127105 M20 35 2.5 2.5 1.3 50 82 54 17.5 141.5 12 30
127106 M24 35 3 4 1.4 50 82 54 17.5 141.5 14 36
127107 M27 38 3 4 2.8 60 99 65 21.5 169.2 17 41
127108 M30 48 3.5 5 3.1 60 99 65 21.5 169.2 17 46
127109 M36 62 4 8 5.8 85 124 77 27.5 225 22 55
127110 M42 64 4.5 15 10.7 95 158 95 36 260 24 65

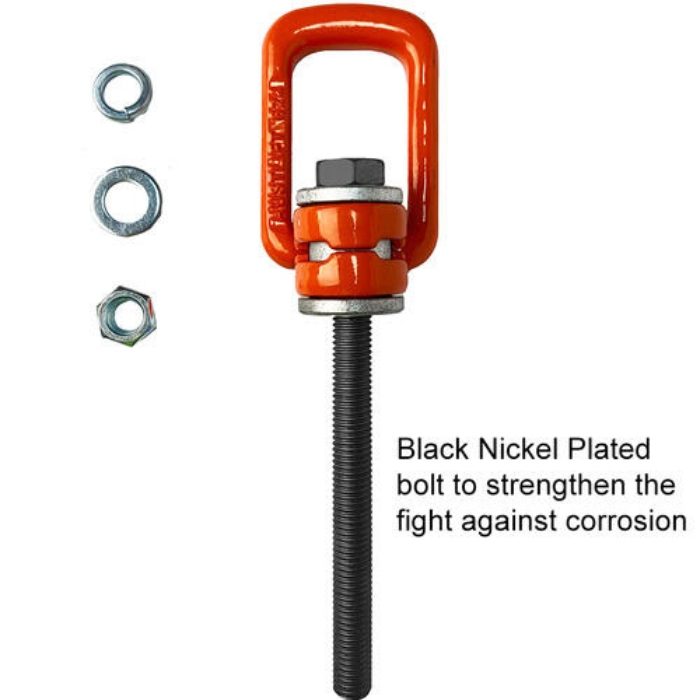

Long Bolt
SKU Thread Thread Length E (mm) Pitch (mm) WLL (t) Weight (kg) Dimensions (mm)
A B C D F N SW
127111 M8 76 1.25 0.3 0.39 33 57 37.5 13 97.9 6 13
127112 M10 96 1.5 0.63 0.43 33 57 37.5 13 97.9 8 16
127113 M12 114 1.75 1 0.8 33 57 37.5 13 98 8 19
127114 M14 140 2 1.2 0.86 33 57 37.5 13 98 10 21
127115 M16 194 2 1.5 1 33 57 37.5 13 98 10 24
127116 M18 180 2.5 2 1.47 50 82 54 17.5 141.5 12 30
127117 M20 187 2.5 2.5 2.27 50 82 54 17.5 141.5 12 30
127118 M24 222 3 4 2.11 50 82 54 17.5 141.5 14 36
127119 M30 279 3.5 5 5.35 60 99 65 21.5 169.2 17 46
  • G80 alloy steel. Load ring to EN 818-4 and swivel to AS 2318.
  • Swivels 360 degrees and pivots 180 degrees.
  • Full WLL at 0 and 90 degrees.
  • Proof tested to 1.25 times the WLL. Safety factor 4:1.
  • Long bolts can be cut to suit, using a cold cutting method only, never oxy-acetylene. The cut length must be at least 1.5 times the diameter.
  • Always tighten to the stated torque with a torque wrench, and check the thread engagement before lifting.
