Yoke Swivel Lifting Point

From $120.50

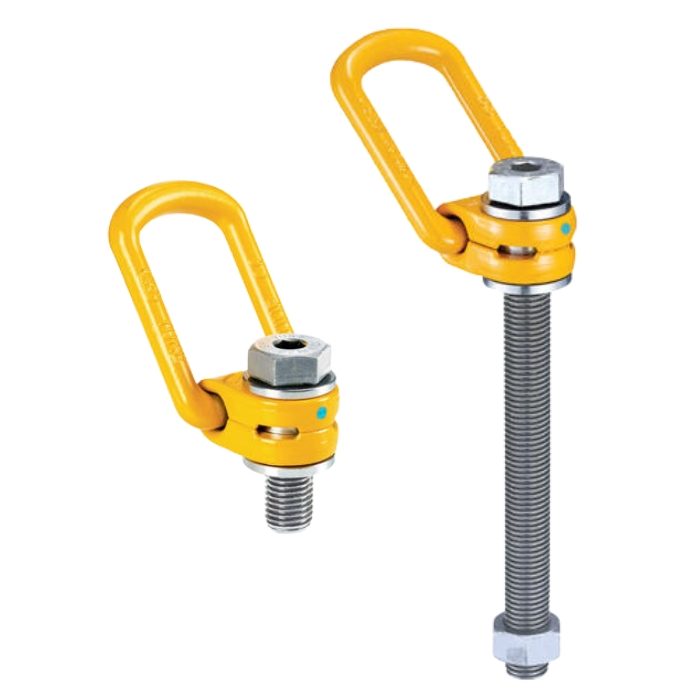

The Yoke Swivel Lifting Point is a ring bolt with a load ring that rotates 360 degrees and pivots, so it lines up with the load. It needs only a tapped hole, and comes in short and long bolts from M8 to M48 with WLLs from 0.3t to 20t.

Add to WishlistAlready In Wishlist
Add to Wishlist
Add to quote
SKU: N/A

Need compliance tags? Click here to purchase

Description

Short Bolt
SKU Thread Thread Length E (mm) Pitch (mm) WLL (t) Torque (Nm) Weight (kg) Dimensions (mm)

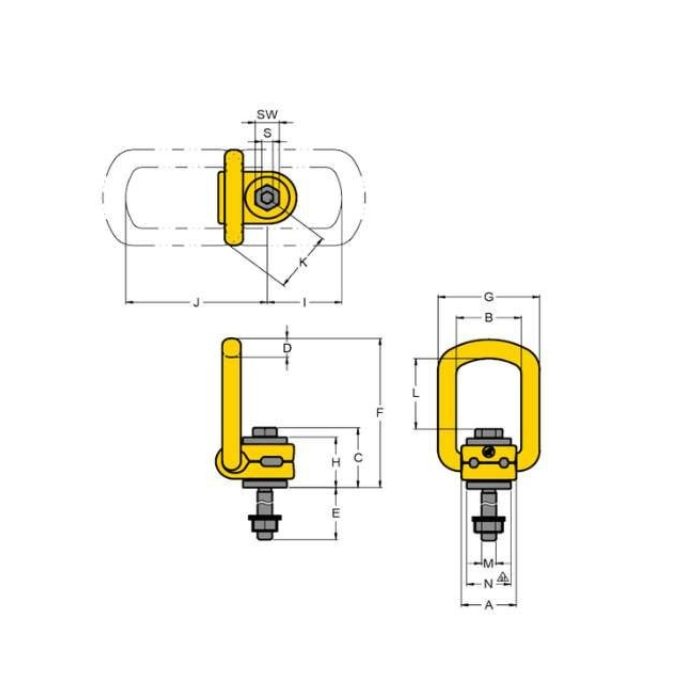

A B C D F G SW J K L N
14999 M8 11 1.25 0.3 30 0.3 30 35 35 11 86 55 13 77 34 41 24
15000 M10 16 1.5 0.63 60 0.4 30 35 36 11 86 55 17 78 34 40 24
15001 M12 18 1.75 1 100 0.5 33 38 44 14 99 57 19 89 38 42 31
15002 M16 24 2 1.5 150 0.6 33 38 46 14 99 57 24 89 38 40 31
15003 M20 30 2.5 2.5 250 1.6 50 54 56 16 143 82 30 132 53 70 49
15004 M24 36 3 4 400 1.9 50 54 59 16 143 82 36 132 53 67 45
15005 M27 38 3 4 400 2.9 60 65 79 23 171 99 41 153 64 69 59
15006 M30 49 3.5 5 500 3.1 60 65 81 23 171 99 46 153 64 67 59
15008 M36 62 4 8 800 5.9 77 85 101 27 225 124 55 205 80 97 69
15010 M42 63 4.5 15 1500 10.9 95 104 112 36 258 158 65 230 99 110 98
15011 M48 72 5 20 2000 12.1 95 104 120 36 260 158 75 230 99 104 98
15007 M36 54 4 7 – – – – – – – – – – – – –
15009 M42 72 4.5 10 – – – – – – – – – – – – –
Long Bolt
SKU Thread Thread Length E (mm) Pitch (mm) WLL (t) Torque (Nm) Weight (kg) Dimensions (mm)
A B C D F G SW J K L N
100346 M8 76 1.25 0.3 30 0.4 30 35 35 11 86 55 13 77 34 41 24
100348 M10 96 1.5 0.63 60 0.4 30 35 36 11 86 55 17 78 34 40 24
100353 M12 114 1.75 1 100 0.5 33 38 44 14 99 57 19 89 38 42 31
100358 M16 149 2 1.5 150 0.7 33 38 46 14 99 57 24 89 38 40 31
100360 M20 187 2.5 2.5 250 1.7 50 54 56 16 142 82 30 132 53 70 49
100364 M24 221 3 4 400 2 50 54 59 16 143 82 36 132 53 67 45
100377 M30 279 3.5 5 500 4.3 60 65 81 23 170 99 46 153 64 67 59
100379 M36 222 4 8 800 6.9 77 85 101 27 225 124 55 205 80 97 69
100381 M42 264 4.5 15 1500 13.5 95 104 112 36 258 158 65 229 98 110 98
100382 M48 295 5 20 2000 15.5 95 104 120 36 260 158 75 230 99 104 98
  • Rotates through 360 degrees and pivots to the direction of the load.
  • Alloy steel, quenched and tempered.
  • Tested in accordance with EN 1677-1.
  • Load rated parts are 100% magnaflux crack detected.
  • Forged parts and cap screw are traceable to test certification.
  • Proof tested to 2.5 times the WLL. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • Meets or exceeds ASME B30.26. Design factor 4:1.
  • Metric bolts. Quick and simple to fit, just a tapped hole is needed.
  • Always tighten to the stated torque with a torque wrench, and check the thread engagement before lifting.
