Codipro Quick Lift DSR Ring 360

Name: Codipro Quick Lift DSR Ring 360
SKU: 35566
Availability: InStock

Enquire now or call 03 349 0007

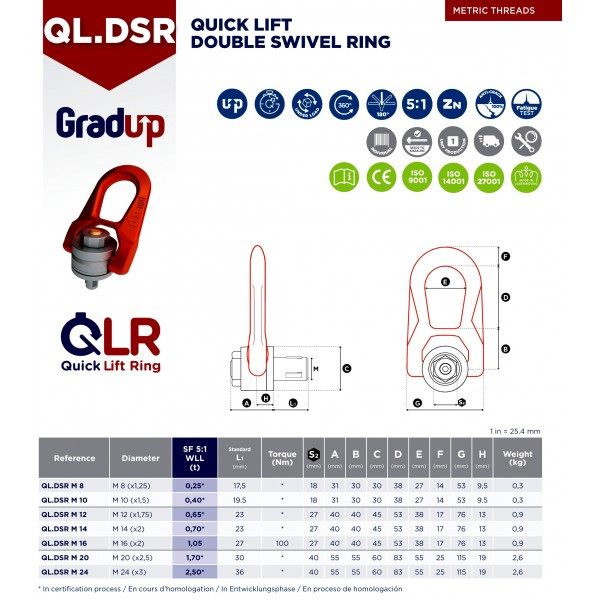

The Codipro Quick Lift DSR Ring 360 (QL.DSR) is a swivel lifting ring that locks into a threaded hole in seconds at the push of a button, saving up to 80% of the time of screwing in a standard swivel ring. It comes in M8 to M24.

SKU: N/A

Description

SKU

Thread

Pitch (mm)

WLL (t)

101022

1.25

0.25

101023

M10

1.5

0.4

101024

M12

1.75

0.65

101025

M16

1.05

101026

M20

2.5

1.7

101027

M24

2.5

Fixes into the threaded hole at the push of a button.

Up to 80% time saving compared with screwing in a standard swivel ring.

Purely mechanical system: maintenance free, safe and reliable.

Made of GRADUP steel, with higher capacities than fixed rings.

Safety factor 5:1.

Codipro is ISO 9001, ISO 14001 and ISO 27001 certified.
