Home / Products / Lifting Equipment / Grade 100 Lifting Components / G100 Pear Links, Rings & Connectors / G100 Crane Master Ring

G100MasterCraneRing

G100MasterCraneRingDia

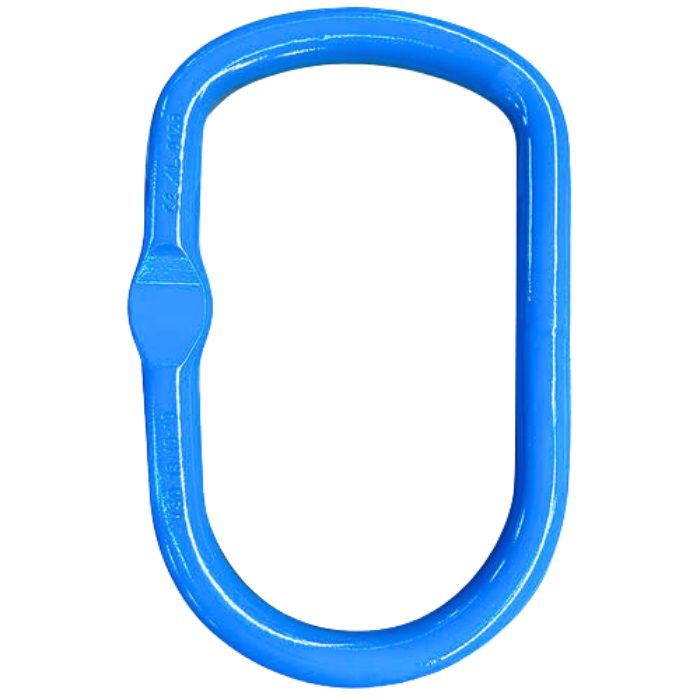

G100 Crane Master Ring

From $79.00

Austlifts G100 Crane Master Rings provide a wide top, designed to have a perfect, balanced fit on wide crane hooks. This will prolong the usage of the master ring in comparison to the standard round head by reducing the wear and tear on the edge of the link.

Size:

Clear

Add to WishlistAlready In Wishlist

SKU: N/A

Description

Suit Chain Size (mm)		SKU	WLL (T)	Weight (kg)	Dimensions (mm)

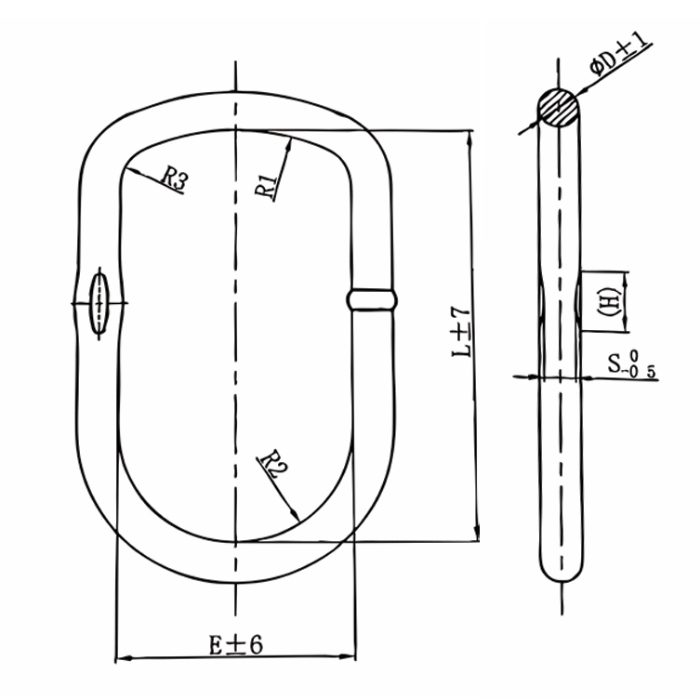

1 Leg	2 Leg	SKU	WLL (T)	Weight (kg)	L	E	D	R1	R2	R3	S	H
13	10	159041	7.5	2.15	230	125	22	118	62.5	22	17	33
16	13	15042	12.5	3.75	250	135	28	118	67.5	22	23	42
20	16	159043	17	5.35	280	135	32	132	67.5	25	26	48
22	20	159044	28	9.85	320	175	40	170	87.5	32	29	50

Certified to AS/NZS 3776
G100 Alloy Steel.
