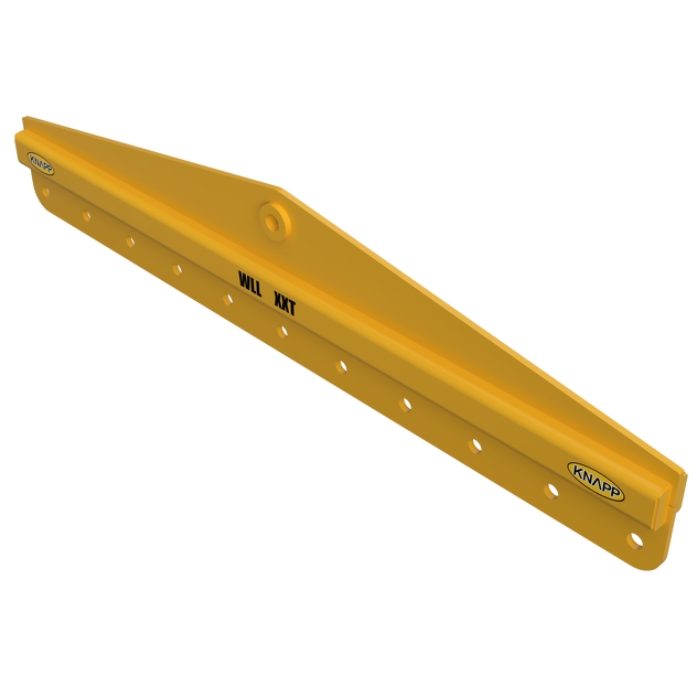

Central Spreader Beam with Multiple Lifting Holes

From $2,304.75

The Central Spreader Beam with Multiple Lifting Holes lifts from a central point on top of the beam so the load stays evenly supported, with a row of lifting holes underneath to suit different load lengths. Available from 1m to 4m with a WLL of 1t to 20t. Designed, made and certified in New Zealand.

Rigging and shackles are not included with the spreader beam.

Price includes shipping NZ wide. Not held in store, please allow 15 to 20 working days.

Add to quote
SKU: N/A

Description

  • Central lifting point keeps the load evenly supported and stops it tipping or shifting.
  • Fixed plate under the beam with multiple lifting holes for different load lengths.
  • Lengths from 1m to 4m.
  • WLL from 1t to 20t.
  • Suits situations with enough headroom above the spreader beam.
  • Sizes are listed by length and WLL.
  • Certified to AS 4991-2004 Lifting Devices.
  • Powder coated safety yellow.
  • 100% New Zealand made.
  • Heavy duty construction.
SKU Size WLL (t) Top Shackle (t) Lower Shackle (t) Lifting Holes Dimensions (mm)
A X V
127002 1t 1m 2 9.5 2 9 1000 252 125
127003 5t 1m 5 9.5 6.5 9 1000 278 125
127004 10t 1m 10 17 12 9 1000 303 125
127005 20t 1m 20 25 17 6 1000 351 200
127006 1.5t 1.5m 2 9.5 2 11 1500 252 150
127007 4t 1.5m 4 9.5 6.5 11 1500 278 150
127008 7t 1.5m 7 17 8.5 7 1500 291 250
127009 10t 1.5m 10 25 12 7 1500 314 250
127010 20t 1.5m 20 25 25 7 1500 415 250
127011 1t 2m 1 9.5 2 11 2000 252 200
127012 3t 2m 3 9.5 3.2 11 2000 268 200
127013 5t 2m 5 17 6.5 9 2000 286 250
127014 10t 2m 10 17 12 9 2000 389 250
127015 2t 3m 2 9.5 2 13 3000 276 250
127017 5t 3m 5 12 6.5 13 3000 323 250
127018 8t 3m 8 17 8.5 13 3000 391 250
127019 2t 4m 2 9.5 2 17 4000 276 250
127020 3.5t 4m 3.5 9.5 4.75 17 4000 323 250
127021 6t 4m 6 12 6.5 17 4000 398 250

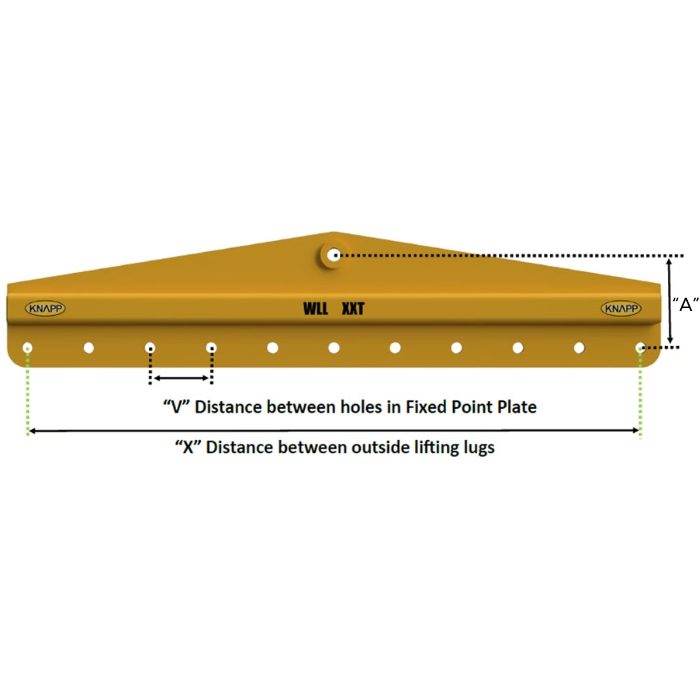

X = distance between the outside holes. A = distance from the top lifting hole to the lower lifting holes. V = distance between lifting holes.
