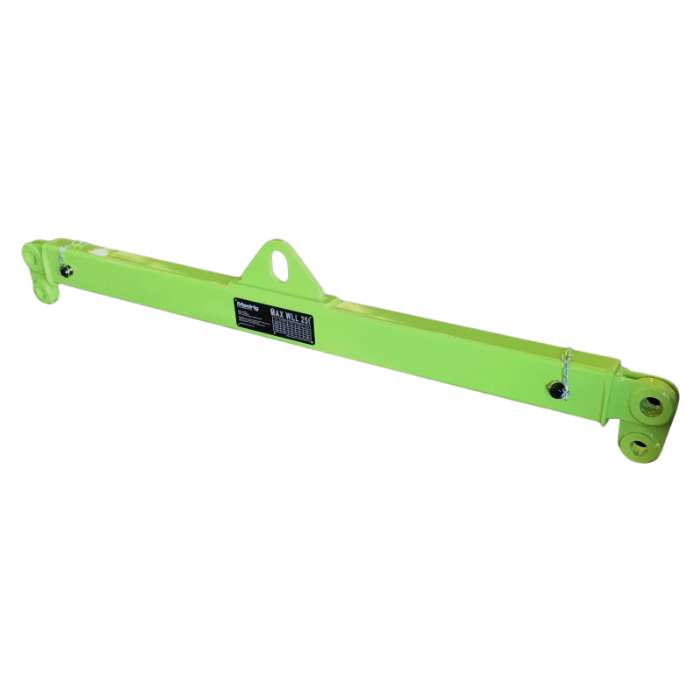

Telescopic Combination Beam 25t 3.6m (TSB2254)

Enquire now or call 03 349 0007

The Maxirig Telescopic Combination Beam 25t 3.6m (TSB2254) is a general purpose beam sized to suit the stowage points on Franna type cranes. It works as a spreader bar in the 60°, 90° and 120° positions and as a lifting beam from the centre lug. Supplied certified to AS 4991-2004 with a proof load test certificate and MPI welding report.

Not held in stock, please call for a delivery time frame.

Add to WishlistAlready In Wishlist

Description

Specification

Value

Product Code

TSB2254

WLL

25t

Maximum length

3.6m

Tare Weight

160kg

Lift Lugs (top) suit

25t Grade S safety bow shackle

Load Lugs (lower) suit

17t Grade S safety bow shackle

Centre Lug suits

Crane hook or various shackles

Sized to suit the stowage points on Franna type cranes.

Works as a spreader bar in the 60°, 90° and 120° positions.

Can be used as a lifting beam from the centre lug.

Tare weight excludes shackles and rigging.

Supplied certified to AS 4991-2004.

Includes a proof load test certificate and MPI welding report.
