Austlift BS4278 Black Metric Eye Bolt

From $5.95

The Austlift BS4278 Black Metric Eye Bolt is a collared eye bolt with a smaller eye than the DIN type, used as a removable lifting point in a rated female thread or nut. It suits theatre and stage rigging, in M10 to M20.

Add to WishlistAlready In Wishlist
Add to Wishlist
Add to quote
SKU: N/A

Need compliance tags? Click here to purchase

Description

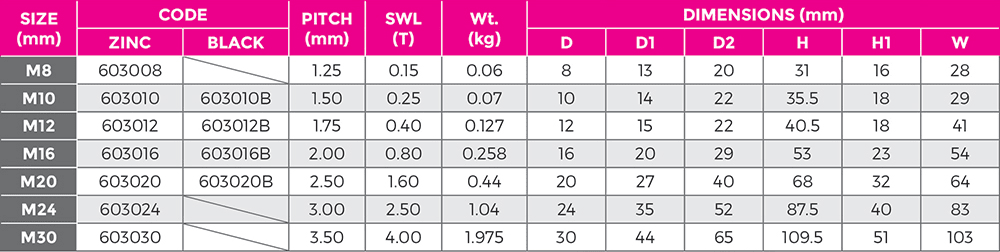

SKU Thread Pitch (mm) WLL (t) Weight (kg) Dimensions (mm)
D D1 D2 H H1 W
157964 M10 1.50 0.25 0.07 10 14 22 35.5 18 29
157965 M12 1.75 0.40 0.127 12 15 22 40.5 18 41
157966 M16 2.00 0.80 0.258 16 20 29 53 23 54
157967 M20 2.50 1.60 0.44 20 27 40 68 32 64
  • Carbon steel to BS 970, with a black finish and a smaller eye than the DIN type.
  • Conforms to AS 2317.1:2018 and BS 4278.
  • Marked with axial and transverse WLL, thread type, size and batch number.
  • Proof tested to 2 times the WLL, with a minimum breaking force of 6 times the WLL.
  • Test certificates supplied on request.
