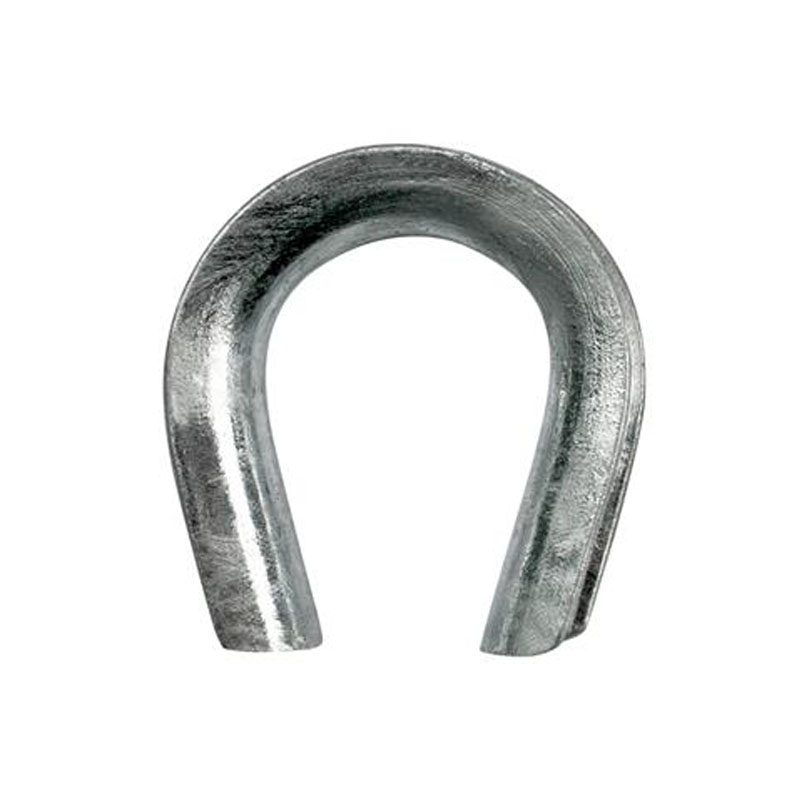

Open Thimble Galvanised

The Open Thimble Galvanised is an Australian Standard open type thimble, so a fitting can be placed into the thimble without opening it, and the thimble can then be closed back to its intended form. It comes in 10mm to 20mm.

SKU: N/A

Description

SKU Size (mm) Opening (mm) MBF (kN) Weight (kg) Dimensions (mm)
A B D H
125660 10 21 63.1 0.09 21 12 30 60
125661 12 21 90.8 0.13 21 16 37 65
125662 16 25 161 0.26 25 20 50 88
125663 20 25 252 0.55 25 24 60 90
  • Recommended for lifting applications.
  • Conforms to AS/NZS 1138.
  • Heat treated high tensile steel, hot dip galvanised.

Dimension Diagram
