SKU: 11950

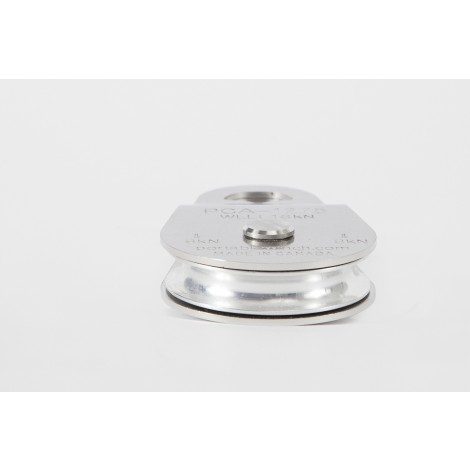

PCW Stainless Steel Swing Side Snatch Block 76mm Aluminum Sheave

$149.00 + G.S.T (inc G.S.T $171.35)

The PCW Stainless Steel Swing Side Snatch Block 76mm Aluminum Sheave has a light, deep groove aluminium sheave and stainless steel side plates that swing open to fit the rope. It is smaller and lighter than the 100mm block.

Add to quote

Description

  • Swing side plates fit the rope without threading, and stop it coming out once closed.
  • Sintered bronze bushing on a stainless steel shaft gives 98% efficiency.
  • Useful for doubling the line, redirecting a load or pulling uphill.
  • Attach to a polyester sling with a steel locking carabiner.
  • Not designed for steel cable.
Specification Value
SKU 11950
Code PCA-1275
Working Load Limit 20kN (2,040kg)
Sheave Diameter 76mm
Rope 6-10mm, 10mm ideal
Material Stainless steel sides, aluminium sheave
Weight 0.69kg
Dimensions (L x W x H) 17 x 11 x 11cm
Warranty 1 year
